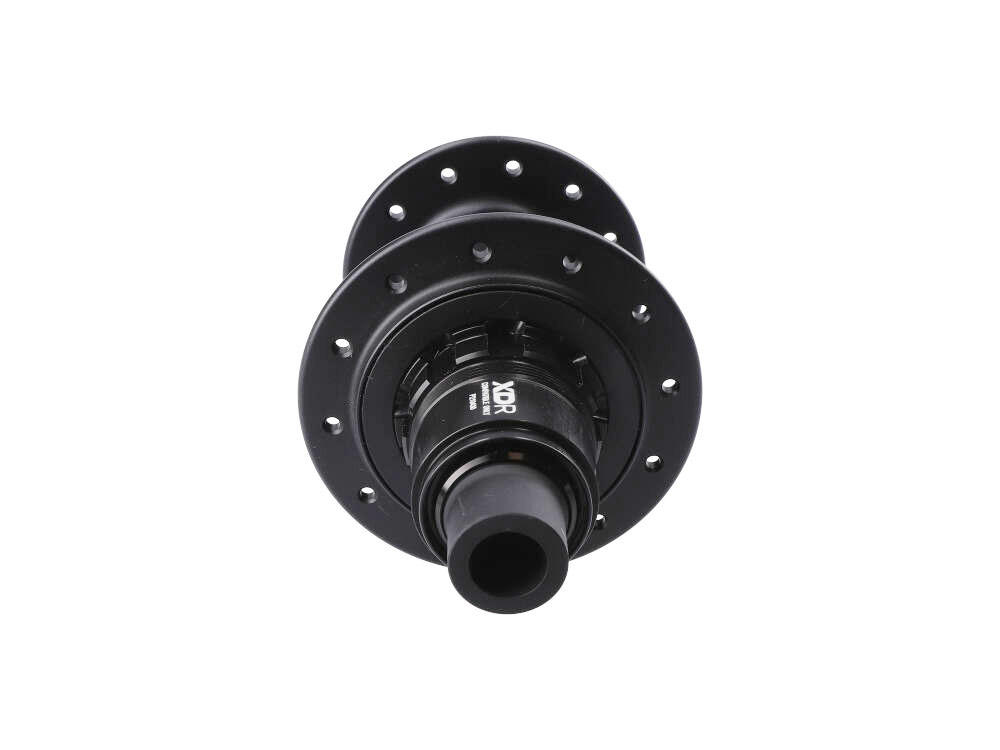

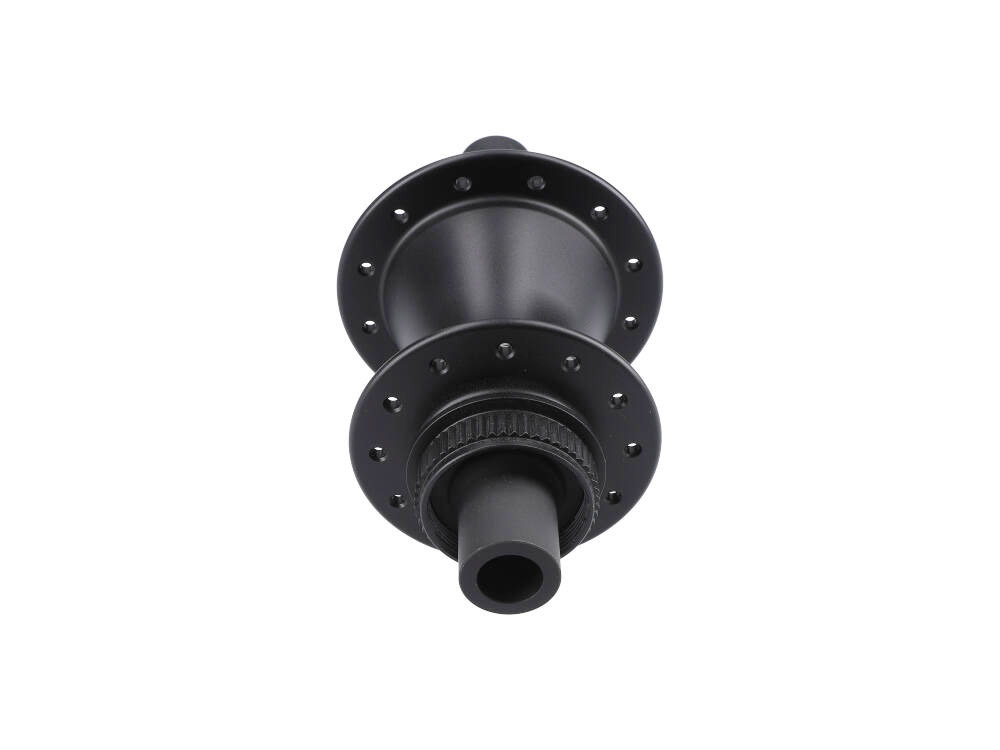

ZIPP Rear Hub ZR1 Center Lock | 12x142 mm Thru Axle | Freehub SRAM XDR

Item number:
Product weight: 234 g
Brands: ZIPP

old price: 244,50 €
from Special price 215,00 €
MSRP: 317,00 €
You save 32,18%, that is 102,00 €

including 19% VAT. , excl. Shipping costs / shipping time info

Hole Number

There are variations of this item. Please select the variation you wish.

available from stock
Credit Card, PayPal, Amazon...
Secure Transaction
Refund within 100 Days
Free Return

We can't deliver this item to your chosen country.

Product details | Availability


ZIPP rear hub ZR1 Center Lock | 12x142 mm thru axle | Freehub SRAM XDR

The ZR1 are the latest generation of hubs for the Zipp Firecrest wheelsets, which have been tried and tested in the professional peloton. For the next evolutionary stage, the engineers from the German development office in Schweinfurt were turned to. After more than two years of development, the ZR1 hubs are now ready for the market. The most outstanding feature is the extremely finely toothed freewheel body design of the rear wheel hub with 66 locking points per wheel revolution, which allows the ZR1 to react to acceleration without any delay. The fine toothing is realized via a system of 6 pawls, of which 3 pawls engage offset. The freewheel body is designed to keep the pawls in place during disassembly for ease of maintenance. The hub flanges also ensure easy maintenance for classic J-bend spokes, which are easier to obtain and replace than straightpull spokes. The design of the seals is based on the high-end Cognition hubs and provides more protection and durability with a larger dust cap behind the freewheel body and better seals. The ZR1 was able to prove these properties in over 58,000 test kilometers. Thanks to their robust design, the hubs have also been certified for use on e-bikes with motors up to 55 Nm torque.

Technical specifications:

Area of intended use : road bike, cyclocross, gravel, e-bike (motors with a maximum of 55 Nm)
Material: aluminum, steel
Axle standard : 12x142 mm thru axle type
Number of holes: 24 or 28 holes
Brake disc mount: Center Lock
Freewheel compatibility: 12-speed SRAM XDR or 11-speed SRAM XD (spacer ring included))
Freewheel type: 6 pawls, engaging in pairs / 66 detents per wheel revolution
bearing : 4x industrial deep groove ball bearings
Seal: double sealed
Spoke Type: J-Bend Spokes
Max. permissible spoke tension: not specified
maximum system weight: kA
Colour: matt black

Weight according to the manufacturer: kA
Weight weighed: 234g

Scope of delivery:

1x ZIPP rear hub ZR1 Center Lock | 12x142 mm thru axle | Freehub SRAM XDR
1x spacer ring for SRAM XD cassettes
