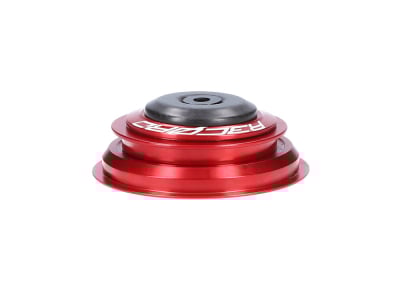

YUNIPER Headset R3CORD Ultralight Semi-Integrated Tapered S.H.I.S. ZS44/28,6 | ZS55/40 1 1/8" - 1 1/2" | red
The lightweight R3c0rd headset from Yuniper will be an eye-catcher on your bike. The beautifully and delicately crafted aluminum bearing shells adapt perfectly to any frame. The low overall height of the ball bearings and bearing shells means that a lot of weight has been saved. But the inner values can also be exaggerated. Yuniper's own ball bearings stand for durability and smooth running. Their balls have been hardened in a special process and coated with a special protective layer. This makes them particularly resistant to external influences and protects them from corrosion. They can also be replaced if necessary. Thanks to the different anodized colors, you can perfectly match the headset to your bike. Another visual highlight is the matt 3K carbon Ahead cap including aluminium screw included in the scope of delivery.
Technical data:
Material: 7075 aluminum, steel, 3K carbon head cap
Construction: semi-integrated
Steerer tube: 1 1/8" - 1.5"
S.H.I.S. top section: ZS44/28.6
S.H.I.S. lower part: ZS55/40
Press-in dimension top Ø: 44 mm
Top offset: 6 mm
Press-in dimension bottom Ø: 55 mm
Offset bottom: 6.5 mm
Outer diameter top: 50 mm
Outer diameter bottom: 62 mm
Overall height top: 3 mm
Overall height bottom: 1 mm
Bearing: industrial ball bearing, double sealed
Color: red, screw red
Weight according to manufacturer: 59g (headset without accessories), 12g (carbon Ahead cap, Ahead bolt and claw)
Weight self-weighed: 59g (headset without accessories); 4.9g (carbon Ahead cap and Ahead screw); 6g (claw)
Scope of delivery:
1x upper part incl. bearing ZS44/28.6
1x lower part incl. bearing and fork cone ZS55/40
1x Ahead cap 3K-Carbon incl. screw and claw
