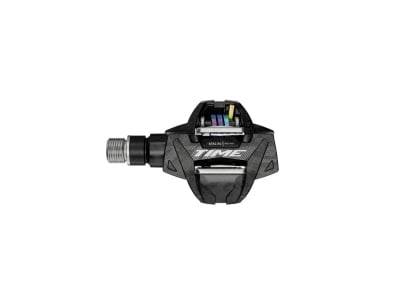

TIME Pedals ATAC XC 10 - C1 | Carbon
The XC 10 - C1 uses the carbon injection molding of the XC 12 pedal in combination with a hollow steel axle. The ATAC system is simple and reliable. Clipping in and out is easy even in the most adverse weather conditions. Thanks to the Self Cleanig concept, the pedal doesn't get stuck in mud and sludge. During the pedaling movement, the mechanism is permanently freed from mud via the contact between the cleat and pedal, so that it functions fully even in the worst conditions.
The enclosed pedal plates allow a release angle of 13° or 17°, depending on how they are attached to the shoes. Cleats with 10° release can be purchased as an option.
Technical data:
Area of application: Cross Country / Cyclocross / Gravel
Material pedal axle: hollow axle steel
Pedal body material: injection-molded carbon composite
Contact surface material: injection-molded carbon composite
Size of contact surface: n.a.
Bearing: steel
Freedom of movement: along pedal axle +/- 2.5 mm | heel rotation +/- 5°
Release hardness: adjustable in 3 steps
Release angle: 13° / 17°, adjustable via cleats (included); 10° cleats (optional)
Q-factor: axle length 54 mm
Compatibility: Time ATAC MTB, for shoes with Shimano SPD standard
Weight limit: n.a.
Color: carbon (black)
Weight according to manufacturer: 280g (pair, without cleats)
Weight self-weighed: 280g (pair, without cleats)
Scope of delivery:
1x pair of TIME pedals ATAC XC 10 - C1 | Carbon
1x pair of ATAC 13° / 17° cleats cleats
