Description

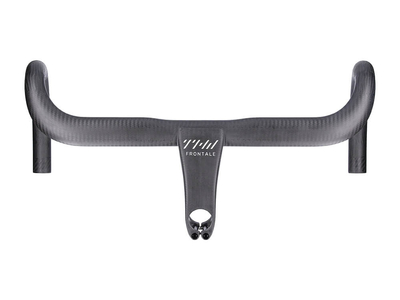

THM CARBONES stem-handlebar unit Frontale Carbon Road | 400 mm
THM's latest development is a handlebar and stem combination that consists of two very stiff and light components that have been brought together for ultimate driving performance. The frontal racing bike handlebar with integrated stem sets new standards in carbon processing. Thanks to its special design, it combines extremely low weight with high load capacity (110 kg driver weight), which makes it one of the lightest stem-handlebar units in the world. Since the handlebar is very high quality, it can do without unnecessary paint. It is only polished to get an even more elegant surface finish. This measure also saves a few grams.
Technical specifications:
intended use : racing bike
Material: carbon
Handlebar clamp Ø: integrated
Handlebar width top link (center - center): 400 mm
Handlebar width top link (center - center): 384 mm
Lower link diameter: 24 mm
Pre-storage / reach: 77 mm
Lowering / drop: 119 mm
Outside bend / flare: 6 °
Inner bend: n / a
Stem length: 90 mm, 100 mm, 110 mm
Stem angle: 6 °
Clamping height of the steerer tube: 40 mm
Backsweep: N / A
Max. Driver weight (driver, clothing and luggage): 110 kg
Max. Permissible torque: 4 Nm (steerer tube / handlebar grips), 3 Nm (computer bracket)
Optics / finish: carbon, natural
Weight according to the manufacturer: 222g (420 x 110 mm)
Weight weighed: 221g (420 x 100mm)
Scope of delivery: 1x THM CARBONES stem-handlebar unit Frontale Carbon Road | 400 mm
