SYNTACE stem 31.8 mm Flatforce Twinfix Torx 31.8 mm
The "missing link" for new generation bikes!
Now is the time for this evolutionary stage. The Syntace Flatforce stem, with 27.5 "(650B) and 29" wheels, can maintain a "normal" handlebar height as with 26 "wheels, with the added benefit that you do not have to struggle with unwanted handlebar elevation Driver's position and thus more pressure on the front wheel, this provides a significant safety plus through more control.
Syntace from Tacherting in Germany presents itself with great pride to the Flatforce.
Syntace grants a 10-year warranty on all its products, if these are installed and used in accordance with the installation instructions.
Made of high strength, malleable 7075 T7X aluminum alloy. The extremely flat and, for the first time, completely hollow-construction Syntace Flatforce weighs. Even with 800 mm wide handlebars it is as stiff and bomb resistant as other stems with over 200g.
With the Syntace Twinfix mounting system, you can mount the Syntace Smart Map Gripper smartphone mount or Lupine Piko and Blika lights on Syntace Megaforce as well as Flatforce stems.
lightweight Torx titanium bolts as standard
This super-light stem is already equipped ex-factory with high-quality Syntace Torx titanium screws (M5x16) to save even the last gram. Due to its high tensile strength, titanium offers the ideal opportunity to save weight even on safety-relevant parts.
flat 3: 5 boom tube
Not 25 mm high, the most effective knee, rib and sternum protection.
Newly developed, patent pending handlebar clamping head: Nothing stands over, no screw, no clamp ... nothing.
But below, the stiffness-optimized Sabertooth * jaw packs the handlebars with 100% reliability and leadership.
Syntace 200 ° head
For gentle handlebar embedding without extra weight: Higher handlebar stability, longer service life and once again slightly improved steering precision.
Of course, VR-3 tested
The world's toughest test standard for handlebars and stems. With handlebars up to 800 mm tested and released without restriction (rider weight and intended use )!
intended use : XC, marathon
Material stem: aluminum 7075-T6
Material screws: titanium
Handlebar clamp: Ø 31,8 mm
Steerer diameter: 1 1/8 "
Lengths: 44 mm, 55 mm, 66 mm, 77 mm, 88 mm, 99 mm or 111 mm
Angle: k. A.
Clamp height Steerer: 27 mm (44 mm / 55 mm), 27 mm (66 mm), 29 mm (77 mm), 31 mm (88 mm / 99 mm), 33 mm (111 mm)
Clamp width handlebar: 47 mm
Clamp width handlebar: 48 mm
Tool holder: T25 Torx
Max. permissible torque: 8 Nm
Weight restriction: without
Finish: Shotpeen Black Anodized
Weight according to manufacturer: n / a

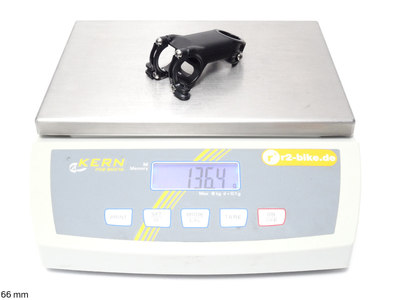

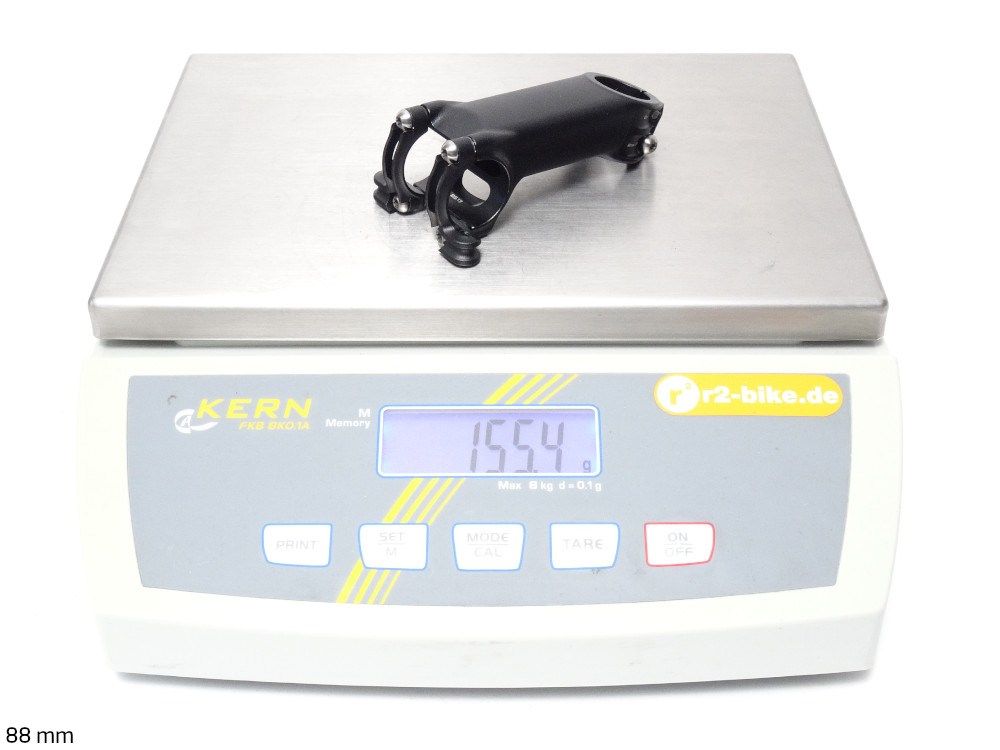

Weight itself weighed: 115g (44mm), 126g (55mm), 136g (66mm), 155g (88mm), 176g (111mm)
1x SYNTACE stem Flatforce Twinfix Torx 31.8 mm
1x SYNTACE LiteCap 1 1/8 overhead cap (without screw)
