SRAM Force AXS HRD E1 Road bike groupset 2x12 | AXS Powermeter crank | 50-37 teeth
Performance without compromise. The Force AXS components offer you pro-level technology and low weight so that you can concentrate fully on your ride. Numerous features have been adopted from the RED top groupset, ensuring reliable shifting in all conditions and the newly designed shift/brake levers offer you effortless and powerful braking. Personalization, firmware updates and the integration of AXS additional shifters can be carried out conveniently via the SRAM AXS app.
Crank
With the Force crank with integrated AXS power meter spider, you get a reliable and precise power meter to get the most out of your training. Thanks to the threaded chainrings (thread mount), the stiffness in the crank system is increased and the power meter can deliver even more precise data. The increased stiffness also improves shifting behavior. The small 13-tooth jumps between the chainrings of the three available gear ratio variants ensure crisp and precise shifting behavior. In combination with the X-Range 12-speed cassettes with a high gear range, you can stay on the large chainring for longer and therefore have to shift less frequently with the derailleur. For easy monitoring and firmware updates, you can configure the power meter conveniently via the SRAM AXS app.
Powermeter features:
- Power Balance measures the power of the left and right leg independently
- 10K Active Temperature Compensation
- Wireless data transmission via Bluetooth Low Energy or ANT+
- MagicZero automatically checks and calibrates your power meter during the ride
- Cadence measurement via acceleration sensors (no additional magnet required!)
- Waterproof construction according to IPX7 standard
- LED power indicator always informs you about the battery level
- 200 hours operating time (tool-free battery change according to CR2032 standard)
- Power Balance measures the power of the left and right leg independently
- +/- 1.5% measuring accuracy
AXS HRD shift-brake system
Braking with just one finger? The SRAM Force Shifter makes it possible. Thanks to stiffer brake calipers and the newly designed shift/brake levers with optimized pivot point, you can generate more braking power in all handlebar positions with significantly less hand force. Thanks to their ergonomic design and grip width adjustment, the shifters are comfortable to use for a wide range of hand sizes. Another highlight are the additional shift buttons integrated into the hoods, which can also be used to operate ANT+-enabled bike computers. The textured main shift paddles work according to the proven eTap shift logic. One rocker switch for upshifting and one rocker switch for downshifting. If both paddles are operated simultaneously, the front derailleur is shifted. The shifting behaviour can be personalized via the SRAM AXS app and additional SRAM Wireless Blip Shifters can also be integrated. Bleeding Edge technology ensures simple and clean bleeding. Thanks to the slim design and the carbon brake levers, the Force AXS HRD system is significantly lighter than the previous version.
Paceline brake rotors | Center Lock
The Paceline brake rotors take up the elegant design of the AXS Road groupsets. With their optimized ventilation holes, they ensure smooth and low-vibration braking performance. The rounded edges on the top of the rotor minimize the risk of injury and comply with the guidelines of the UCI cycling world federation. Another advantage is that they make it easier to install the wheels, as the rounded top prevents jamming in the brake calliper.
Front derailleur
The revised Force AXS front derailleur ensures even more precise and faster shifting. Thanks to a narrower cage with an optimized shape, shifting operations on the large chainring and shifting operations under load are even more reliable than with the previous version. The front derailleur was designed for the 2x SRAM X-Range chainring gradations with a 13-tooth gap between the large and small chainrings.Equipped with the proven Yaw technology and autotrim function, the front derailleur runs smoothly in every gear combination. The force when shifting with an AXS shifter is automatically regulated over the entire shifting range. The adjustment tool included in the scope of delivery ensures perfect adjustment of the front derailleur. The electronic wireless eTap shifting logic ensures intuitive shifting processes and simple, wireless setup. With the integration of AXS technology, the shifting behaviour of the front derailleur can be personalized via the associated app. The necessary power is supplied by the proven SRAM eTap battery.
Rear derailleur
Lighter, faster and with more capacity. The newly designed Force rear derailleur with its carbon rear derailleur cage saves 12 grams compared to the previous version. It can be used with cassettes from 10-28 to 10-36 teeth so that you are equipped for any terrain. The enlarged derailleur pulleys ensure even more efficient chain running. Thanks to the X-Sync tooth profile and chain management technology, the chain is guided safely even in poor road conditions. You can configure and fine-tune the rear derailleur using your smartphone via the SRAM AXS app. An ANT+ transmitter integrated into the rear derailleur enables communication between your bike computer and the rear derailleur.This allows you to display information on the battery charge status and the current gear ratio in your cockpit.
Cassette
No matter what terrain you are riding on, SRAM Force has the right cassette option for you. For maximum range and low weight, all cassette options start with a 10-tooth sprocket. All cassettes offer at least 4 sprockets with 1-tooth gear steps so that you can maintain your optimum cadence in the high speed range. The sprockets are made of tool steel with an additional nickel-chrome protective coating to ensure durability. The individual sprockets are riveted together in the proven full-pin design. The largest sprocket is made of aluminium to keep the weight low.
Chain | 126 links
With its milled inner and outer plates, SRAM was able to save a few grams of weight on the Force-Flattop chain. Thanks to the hard chrome coating on the inner plates and rollers, the chain can withstand tough shifting maneuvers and has an increased service life. The chain is easily locked with the enclosed Powerlock chain lock.
Charger/batteries
The batteries on the rear derailleur and front derailleur have a range of over 1000 kilometers. The charge status can be checked at any time via an LED light and the batteries are recharged within an hour using the charger supplied.
Technical data
Area of application: Road bike, gravel, cyclocross
Material: Aluminum, carbon, plastic
Gears: 2x12
Brake type: hydraulic disc brake
Brake mounting: Flat mount
Data transmission smartphone | bike computer: Bluetooth, ANT+
Bonus shift button: yes
Wireless Blips compatibility: yes
Crankshaft: DUB Road
Crank lengths: 160; 165; 170 or 172.5 mm
Chainring gradation: 50-37 teeth
Chainline: 45 mm
Q-factor: 145 mm
Spider/chainring mount: SRAM Direct Mount | Thread-Mount
Cassette gradation: 10-28, 10-30, 10-33 or 10-36 teeth
Freehub body compatibility: SRAM XDR
Front derailleur mounting: Braze-on (clamp optionally available)
Brake rotors: 160 mm Paceline | Center Lock (optional)
Battery life: approx. 1000 km
Weight according to manufacturer: 2411g (cassette 10-30T; crank 48-35T; 172.5 mm; without brake rotors and without bottom bracket)
Weight weighed: 2395g (cassette 10-33T; crank 48-35T; 170 mm; without brake rotors and without bottom bracket)

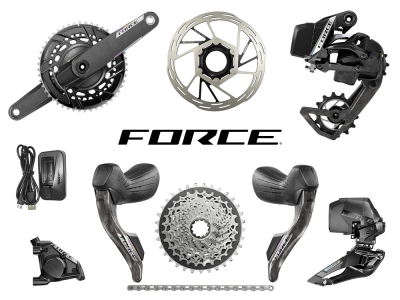

Scope of delivery:
1x SRAM Force DUB AXS Powermeter crank Carbon Road 2x E1 | 50-37 teeth
1x SRAM Force AXS shift lever incl. hydraulic disc brake Flat Mount E1 2x 12 left and right including brake lines (filled)
1x SRAM Force AXS rear derailleur 12-speed | 36T E1 including battery
1x SRAM Force AXS front derailleur | 2x12 E1 including battery
1x SRAM Force cassette XG-1270 12-speed E1 | silver
1x SRAM Force chain 12- / 13-speed Flattop E1 126 links | silver including Powerlock chain lock
1x eTap battery charger and charging cable
2x SRAM Paceline 160 mm brake rotors | Center Lock including lockrings (optional)
1x SRAM DUB Road bottom bracket (optional)
Please note the information on battery regulations
