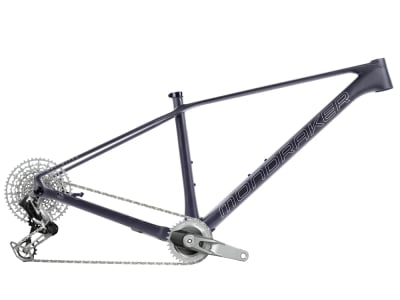

SRAM 1987 Groupset x MONDRAKER Frame 29" Podium Carbon Unlimited Naked | Raw Carbon
Mondraker, passion for mountain biking meets 1987, the birth of a legend.
With the Podium Unlimited Naked, Mondraker clearly focuses on uncompromising weight optimization. The raw carbon look not only impresses with its elegant appearance, but also saves a few grams of weight compared to the standard model. The strictly limited frameset is lovingly handcrafted in the Mondraker Blue Lab paint studios as part of the CSP (Color Select). An absolute must-have for all those who pay attention to every gram of their bike! What could be better than the limited 1987 collection? It combines selected highlights of the Transmission Ecosystem that SRAM is particularly proud of - in an exclusive silver finish. To ensure that this drivetrain remains just as exclusive as its history, the collection is limited to 1987 units worldwide.
MONDRAKER Frame 29" Podium Carbon Unlimited Naked | Raw Carbon
Technical data:
Application: Cross Country, Marathon
Material: Stealth Air Carbon
Frame sizes: S, M, L
Wheel size: 29"
Head tube: 1 1/8" - 1.5" tapered
Headset: fully integrated S.H.I.S. IS41.8 x 30.5 | IS51.9 x 40
Front suspension travel: 100 mm
Fork offset: 44 mm recommended
Seat tube (inner diameter): 27.2 mm
Seat tube (outer diameter): n.a.
Front derailleur mount: none, only for 1x drivetrains
Bottom bracket type: 73 mm BSA
Disc brake mount: flat mount, post mount possible with adapter
Maximum permitted brake rotor size: 160 mm
Maximum tire width: 2.35" (also smaller depending on manufacturer)
Rear axle system: 12 x 148 mm thru axle Boost
Gear type: derailleur gears, 1-speed only
max. system weight: n/a A.
Seat tube length (A): S (390 mm), M (420 mm), L (470 mm)
Top tube length (B): S (590 mm), M (611 mm), L (632 mm)
Chainstay length (E): 430 mm
Current seat tube angle (F): 73°
Effective seat angle (G): 74.5°
Steering angle (H): 68.5°
Wheelbase (J): S (1107 mm), M (1128 mm), L (1150 mm)
Head tube length (K): S (85 mm), M (90 mm), L (100 mm)
Reach (L): S (425 mm), M (444 mm), L (463 mm)
Stack (M): S (598 mm), M (602 mm), L (611 mm)
Cable routing: internal
Colors: Unlimited Naked (Raw Carbon), white decals
Finish: matt
Weight according to manufacturer: n/a A.
Weight self-weighed: 867g (size M, including thru axle, seat clamp, derailleur hanger without additional accessories)
Scope of delivery:
1x MONDRAKER frame 29" Podium Carbon Unlimited Naked | Raw Carbon | Team Edition including thru axle and UDH derailleur hanger
1x ONOFF titanium headset
1x seat clamp
1x post mount adapter
1x set of mounting material for internally routed cables and cables including noise protection
SRAM Eagle Transmission 1987 Edition MTB groupset | 55 mm chainline 174 mm Q-factor | 170 mm | silver
Technical data:
Cassette material: aluminum, steel
Material Pod Controller: Aluminum, plastic
Rear derailleur material: Aluminum
Crank material: Aluminum
Gear steps: 12
Crank length: 170 mm
Chainring: 32&34 teeth
Chainline: 55 mm (Wide)
Q-factor: 174 mm
Controller position: right & left
Abstufung: 10,12,14,16,18,21,24,28,32,38,44,52
Gear range: 520%
Freewheel compatibility: SRAM XD
Rear derailleur compatibility: SRAM Eagle Transmission 10-52 teeth
Color cassette and chain: silver
Color rear derailleur and controller: silver/black
Weight according to manufacturer: n.a.
Weight self-weighed: 1825g (170 mm crank arm length, 34 teeth)
Scope of delivery: SRAM Eagle Transmission 1987 Edition MTB groupset | 55 mm chainline 174 mm Q-factor | 170 mm | silver
1x SRAM 1987 Eagle Transmission rear derailleur
1x SRAM 1987 aluminum crank, 170 mm
1x power meter incl. CR2032 battery (mounted)
1x chainring 32 teeth
1x chainring 34 teeth (mounted)
1x SRAM disassembly tool for thread mount chainring
1x SRAM 1987 Eagle Transmission cassette
1x SRAM 1987 Eagle Transmission flattop chain
2x Pod Ultimate Controller incl. 2032 battery and Infinity Clamp in silver
2x battery
1x 4x charger incl. USB-C cable
