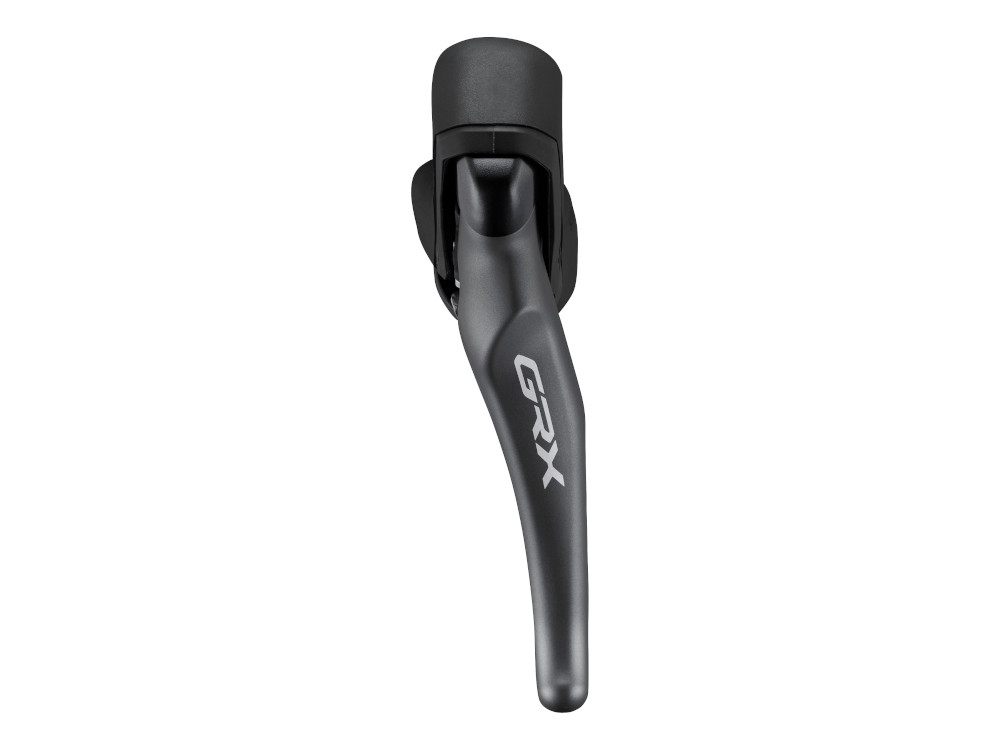

SHIMANO GRX Disc Brake Shift | Brake lever ST-RX820 individually
With the GRX, Shimano brought the first gravel-specific shifting group onto the market. Since then, the range of uses and the range of gravel bikes has expanded significantly. Shimano takes this development into account by also expanding the range of the GRX group. With 12 sprockets on the rear wheel and the option to choose between a 1-speed and 2-speed setup, you can adapt your drive even better to your needs.

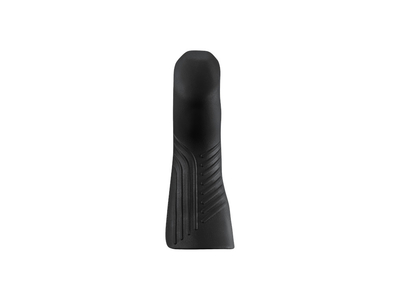

The GRX shift-brake levers have a grip geometry and surface texture specially optimized for Gravel use. The upper hump has been raised so that you cannot slip forward on rough ground. A thumb cut-out ensures a firm grip in difficult terrain at all times. And so that your hands don't slide back and forth when driving in the rain, a non-slip material was chosen, which also has good damping properties and thus increases comfort.
As usual, the dual-control lever of the GRX series offers outstanding ergonomics. The crisp switching operations are short, precise and can be carried out with little finger strength. This means you never lose control of your bike, even in hectic situations.
The brake lever was also designed in such a way that it can be stopped quickly at any time from any gripping position. It is slightly bent inwards and the axle of the lever has been moved up. This improves ergonomics and at the same time reduces the manual effort required. In addition, the reach of the brake lever can be individually adjusted so that bikers with smaller hands can also ride safely.
servo wave action
The Servowave Action technology allows you a short brake lever travel until the pads are in contact with the brake disc. After the brake pad has come into contact, the power transmission factor increases quickly, so that a large part of the lever travel is still available for targeted braking force dosing.
Technical data:
Material handle: composite plastic, resin plastic, rubber
Material brake lever: aluminum
Switching stages: 12-speed at the rear or 2-speed at the front
Compatibility brake caliper: Shimano BR-RX820 flat mount brake calipers
Compatibility brake line: SM-BH90-JK-SSR
Compatibility brake medium: Shimano mineral oil
Design brake lever: Dual Control
Technologies: Reach Adjust, Servowave Action
Reach adjustment: yes / with tool
Empty travel adjustment: yes / with tools
Mounting: left or right
Color: black, gray
Weight according to the manufacturer: 572.5g (per pair)
Weight weighed: 297g (STI right)
Scope of delivery:
1x Shimano GRX ST-RX820 shift/brake lever left or right
1x gear cable (without sleeve), incl. end caps and end sleeve
