Description

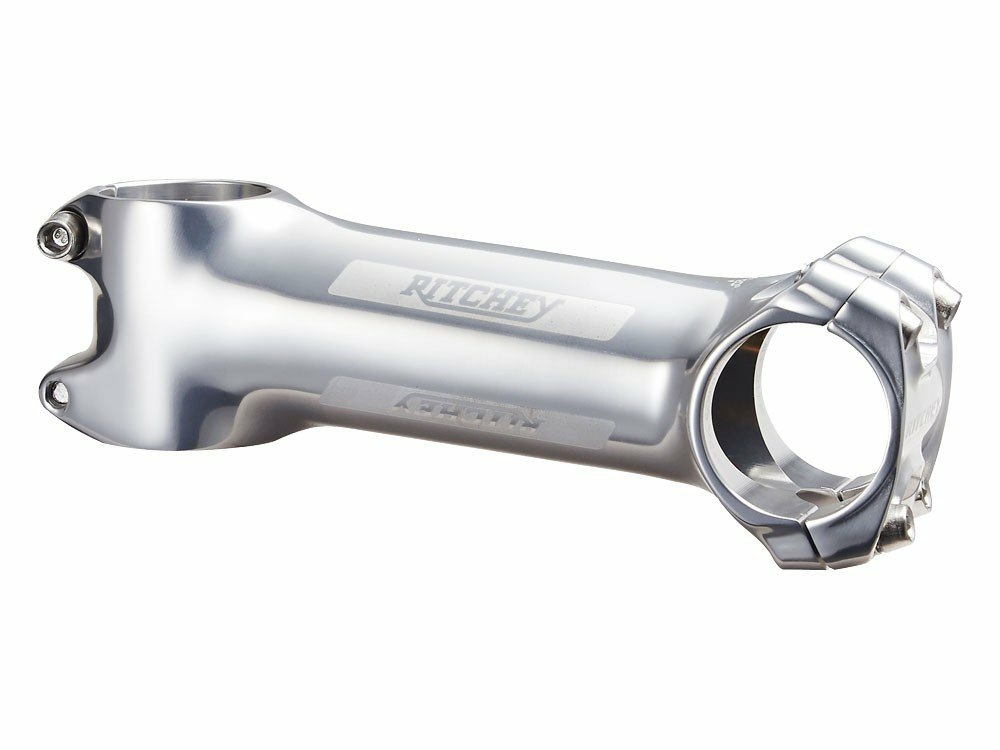

RITCHEY stem CLASSIC C220 silver 6 °
This puristic stem was developed by Ritchey for the target group of performance-oriented bikers.
After C220 Trail, the C220 now has a larger opening of the handlebar clamp of 220 °.
By mount the clamping forces over the entire stem, weight could be saved with the clamping plate itself.
A special clamp is used on the steerer tube to reduce the stress on the steerer tube as much as possible.
Thanks to the FlipFlop assembly, the stem can be installed without removing the handles.
intended use : MTB
Material stem: aluminum 2014
Material screws: 6x CroMo steel M4
Handlebar clamp Ø: 31.8 mm
Steerer diameter: 1 1/8 "
Lengths: 70 to 130 mm
Angle: +/- 6 ° (flip flop)
Clamp height fork shaft: 42 mm
Clamping width handlebar: 42 mm
Tool holder: 4 mm hexagon socket
Max. permissible torque: 5 Nm
Weight limit: N / A (driver, clothing and luggage)
Finish: polished
Silver
Weight according to the manufacturer: 121g (110 mm)
Weight weighed: 119g
Scope of delivery: 1x RITCHEY stem CLASSIC C220 silver 6 °
Note: Use the manufacturer's instructions for correct installation
