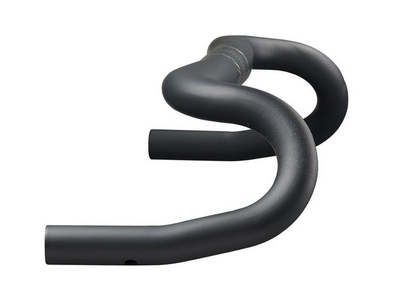

RITCHEY handlebar WCS Road Beacon
The ergonomic development of the Ritchey handlebar continues with the groundbreaking WCS Beacon.
The most notable feature is its super wide 36° drop flare. In addition to the unmatched ergonomic comfort and stability that this wide outer curve provides, it also offers plenty of space for handlebar bags. When riding the drops, the Beacon's comfort doubles with a very shallow 80mm drop and a shorter reach than usual. The Evo-style top provides wide support for your hands and a gentle backsweep for a more natural hand position when riding on the tops. Taking inspiration from the randonneur world, the Beacon allows for easy transition of hands around the handlebars without disrupting the bike's handling when loaded with gear. Gently changing hand position allows the body to stretch and move while the bike remains stable. Other features include non-slip grits on the stem and brake lever mounting surfaces and cable grooves for easier installation.
Technical data:
intended use : Gravel, bikepacking
Material: Aluminum 7075
Top link shape: round
Lower link shape: ergonomic
Cable routing: external cable ducts
Handlebar clamp Ø: 31.8 mm

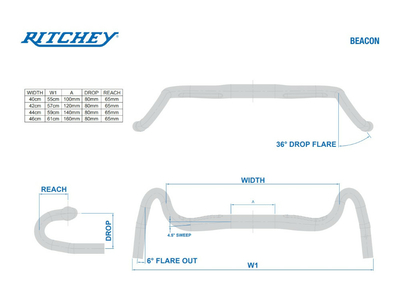

Handlebar width: 400mm, 420mm or 440mm, 460mm (center - center)
Forward position / reach: 65 mm
Lowering / Drop: 80 mm
External bend / flare: 6°
Backsweep: 4.5°
Max. system weight (rider, bike and luggage): 110 kg
Tightening torque max: 5 Nm
Finish: matte
Color: Black
Weight according to manufacturer: 270g (420 mm)
Weight weighed: 300g (420mm)
Scope of delivery: 1x gravel bike handlebar RITCHEY WCS Road Beacon
