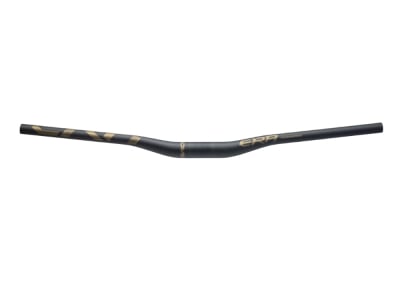

RACE FACE Handlebar Era Carbon Riser | 20 mm Rise | 35 x 760 mm | kashmoney

Description

RACE FACE Handlebar Era Carbon Riser | 20 mm Rise | 35 x 760 mm | kashmoney

Race Face heralds a new era with these handlebars, in the truest sense of the word.
A lot of development work has gone into these carbon handlebars, so particular attention has been paid to the balanced relationship between flex and stiffness. The scheme behind this is called GL tuning (Goldilocks Tune), the perfect tuning of vertical compliance. Briefly explained: most handlebars on the market are now around 800 mm wide and can be shortened to a certain extent and therefore adapted to the rider and machine, but the properties of a handlebar also change as a result. The stiffness increases and the flex decreases, with a shortening from 800 to 760 mm this is already around 24 %, resulting in arm pump and signs of fatigue in the hands and forearms. To achieve the best GL tune, Race Face offers the Era handlebars in widths of 760, 780 and 800 mm. Combined with risers of 10, 20 and 40 mm, there is a handlebar to suit you!

96 individual carbon layers make up the basic structure of the Era handlebars, with a specific layup selected for each handlebar width offered in order to create the most harmonious combination of stiffness and flexibility, as mentioned above. The clamping area of the stem has been narrowed to a width of 60 mm to achieve an early rise and a fast diameter taper. The Race Face Era handlebar now offers you the best balance!

Technical data:

Area of application: Trail, All Mountain, Enduro
Material: UD-Carbon
Handlebar clamp: 35.0 mm
Handlebar width: 760 mm
Rise: 20 mm
Backsweep: 8°
Upsweep: 5°
Shortenable: yes
Barend compatible: no
Rider weight: n/a
max. tightening torque: 5 Nm | 4 Nm for brake and shift levers
Finish: UD carbon matt
Color / logos: black / gold (kashmoney)

Weight according to manufacturer: 220g (800 mm x 40 mm)
Weight self-weighed: 193g (760 mm x 20 mm)

Scope of delivery: 1x RACE FACE Handlebar Era Carbon Riser | 20 mm Rise | 35 x 760 mm | kashmoney
