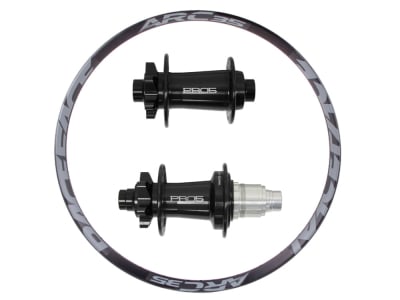

Mullet 29" + 27.5" EN wheelset | Hope 6-hole hubs | Race Face aluminum rims
Application: Enduro EN
With this wheelset you can really let it rip even in difficult terrain. The indestructible Hope hubs and the excellently manufactured Race Face rims are forgiving of the occasional riding error. The well-balanced selection of components guarantees you a high level of reliability and a long service life.
The innovative "Mullet" design gives you the advantages of two wheel sizes in one bike. The 29" front wheel generates maximum grip and low rolling resistance, while the smaller rear wheel increases maneuverability and rear clearance and reduces weight.
Hubs
At the center of the wheelset are the Pro 5 hubs from the English cult manufacturer from Barnoldswick. The experience gained from 30 years of designing and manufacturing high-quality drive elements has been incorporated into their development with the aim of improving proven technology to meet the demands of current and future bicycle technology.
The design of the rear hub differs significantly from its predecessor, with an enlarged body that generates more rigidity without increasing the weight. This is noticeable above all in a significantly more direct ride. At the same time, the diameter of the spoke flange has been increased, making it easier to build very stable wheels.
The highlight of the rear wheel hub is the new 6-pawl freehub system in offset design, which is characterized by the fact that three of the six pawls are always engaged when riding in order to distribute the load evenly. In addition, the freehub gearing has been increased from 44 (Pro 4) to 54 teeth, resulting in a total of 108 engagement points and a low free travel of just 3.33°. In addition, some material has been removed from the pawl springs, which slightly reduces the spring force and lowers their resistance. Hope has thus achieved the right balance between smooth running and durability with the Pro 5.
The hub can withstand negative external influences for a long time, thanks to the high-quality anodization and the very well-sealed stainless steel industrial bearings. Should the ravages of time take their toll on the hub, it can be dismantled and serviced with little effort. It can also be easily converted to a different hub standard.

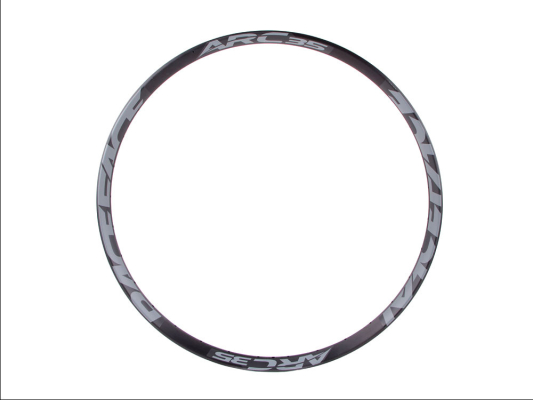

Rims
The ARC rim has become one of the favorite rims of wheel builders from all over the world. The new offset versions allow even stiffer and more durable wheels to be built. This is achieved by a more balanced spoke tension between the drive side and non-drive side.
A specially shaped rim bed with a central recess and minimalist, short hooks on the rim flange holds the tire securely on the rim in every situation, even at low air pressures. The larger contact area of the tire also significantly improves grip.
The rim is made of forged 6069 aluminum, the joint is plugged and additionally glued to increase durability and reduce weight. The black anodized finish saves weight and gives the rims a subtle look with their vinyl decals. Of course, the rims can be converted for tubeless use.
Wheel construction at R2-Bike
Our wheels are assembled entirely by hand by our wheel builders. During the entire assembly process, great importance is attached to ensuring that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to give the first owner a lifetime guarantee against spoke breakage, as long as it is not caused by force.
The following services are also included for first-time buyers:
You will receive a universal wheel bag for all common sizes.
You will receive a spare spoke with nipple in all required spoke lengths so that you can repair the wheel quickly after an accident.
Within 2 years of purchase you will receive a free initial inspection of the wheel, where the resulting work is completely free of charge. Only shipping costs apply.
You get a crash replacement promise: If your wheel is damaged within 2 years of purchase due to force majeure, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.
Technical data
Area of application: Enduro EN
Wheel size: 29" + 27.5" (ETRTO: 622 + 584 x 30 or 35)
Rim type: clincher (clincher and folding tires)
Brake type: Disc brake
Brake disk mount: 6-hole
Weights:
1886g (lightest version: 15x100 mm + 12x142 mm, ARC 30 rims, Sapim D-Light)
1916g (heaviest version: Boost + Boost, ARC 30 HD rims, Sapim Race)
Note:
Deviations in weight are possible due to manufacturing variations in all components. The specifications are generally calculated without rim tape, valves and decals/rim stickers.
The specified delivery time refers to the usual time required to assemble the wheelset and does not reflect the availability of the individual parts.
If you require a special spoking on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
