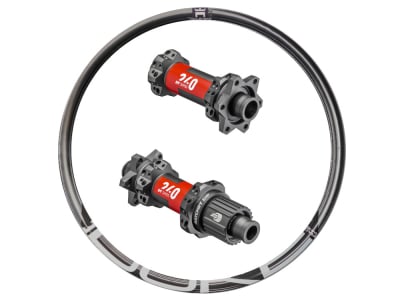

R2BIKE wheelset 29" AM, | DT Swiss 240 MTB Straightpull 6-hole hubs | Duke Carbon rims
Application: All Mountain AM
With this wheelset, even racers can really let it rip. The indestructible DT Swiss hubs and the excellently manufactured Duke rims are forgiving of the occasional riding error. The balanced selection of components guarantees you a high level of reliability and a long service life.
Hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the new DT Swiss 240 hubs. These properties have been achieved thanks to Ratchet EXP technology. This not only means that the hubs have fewer components and therefore lower weight and less wear, it also allows the bearing to be positioned much further out on the drive side. The greater distance between the bearings results in greater hub rigidity, lower bearing loads and therefore greater durability. The stiffness on the hub body serves to distribute the load more evenly on the spokes. Drive and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The super reliable toothed disk freehub system with its large contact surface and 36 engagement points ensures extremely direct and reliable power transmission.

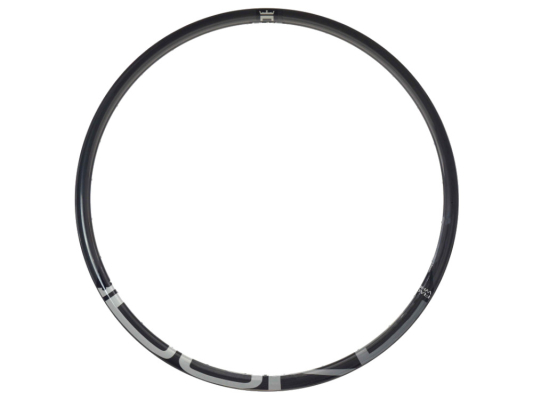

Rims
With the Crazy Jack SLS5, the Duke becomes a king. The French have once again succeeded in significantly improving their all-mountain rim compared to the previous version. A 32.5 mm wide rim with a weight of approx. 355 g (manufacturer's specification) is more than a direct challenge to the competition.
But how did they manage it this time? The use of the highest quality carbon fibers was a matter of course from the outset. Clever use of materials means that only as much is used as is really needed. No compromises were made in the choice of resin either. This has proven itself in aerospace technology, reduces weight and at the same time increases impact resistance. This means that there is no need for reworking or painting after production.
Nevertheless, despite all the optimization, durability must not fall by the wayside. Duke presses so-called ImpactGuard's, highly elastic energy-absorbing inserts, into the cavities on both sides of the rim, which can absorb mechanical impacts and thus contribute significantly to stability.
The new shape, with the small hump on the inside of the rim, also absorbs high load peaks better without increasing the weight. In addition, the preformed spoke holes, the spoke cores, ensure a continuous structure of the carbon fibers. This means that subsequent drilling of these holes is not necessary.
The rims of the SLS5 series also have an asymmetrical rim profile, which enables a more even spoke angle. This optimization of the spoke angle has a number of advantages. The tension on both sides can be better aligned, which is beneficial to the durability of the spokes and the wheel as a whole. The normally direction-dependent lateral stiffness is also adjusted, making the wheel more stable.
The Crazy Jack SLS5 also follows Duke's own "6Ters" concept. The cross-section of the rims is different on the front and rear wheels, with the larger inner width at the front providing more grip and stiffness, while at the rear the focus is on impact resistance and comfort.
Wheel construction at R2-Bike
Our wheels are assembled entirely by hand by our wheel builders. During the entire assembly process, great importance is attached to ensuring that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to give the first owner a lifetime guarantee against spoke breakage, as long as it was not caused by force.
The following services are also included for first-time buyers:
You get a universal wheel bag for all common sizes included.
You will receive a spare spoke with nipple in all required spoke lengths so that you can repair the wheel quickly after an accident.
Within 2 years of purchase, you will receive a free initial inspection of the wheel, during which the resulting work is completely free of charge. There are only shipping costs.
You get a crash replacement promise: If your wheel is damaged due to force majeure within 2 years of purchase, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.
Technical data
Area of application: All Mountain AM
Wheel size: 29" (ETRTO: 622 x see detailed description)
Rim type: clincher (clincher and folding tires)
Brake type: Disc brake
Brake rotor mount: 6-hole
Weights:
1322g (lightest version: 15x100 mm + 12x142 mm, Crazy Jack SLS5, Sapim CX-Ray)
1439g (heaviest version: Boost + SuperBoost, Crazy Jack SLS5, Sapim Race)
Notes:
Deviations in weight are possible due to manufacturing variations in all components. The specifications are generally calculated without rim tape, valves and decals/rim stickers.
The specified delivery time refers to the usual time required to assemble the wheelset and does not reflect the availability of the individual parts.
If you require a special spoking on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
