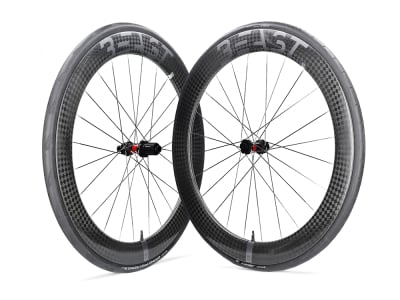

R2BIKE wheelset 28" Disc RR | DT Swiss 240 EXP Straightpull Center Lock hubs | Beast Components RX60 Carbon | Shimano Road | Continental tires | Sapim CX-Ray
Range of use: Road bike RR
This wheelset is just right for triathletes, time trialists and rouleurs. Perfect aerodynamics thanks to the high rims, stable and robust components that can withstand even powerful acceleration and a classic design make their hearts beat faster. The combination of Beast Components carbon rims, the indestructible DT Swiss 240 hubs and Continental tires guarantees you the best performance and a long service life.
DT Swiss 240 EXP hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the new DT Swiss 240 hubs. These properties have been achieved thanks to the Ratchet EXP technology. This not only means that the hubs have fewer components and therefore lower weight and less wear, it also allows the bearing to be positioned much further out on the drive side. The greater distance between the bearings results in greater hub rigidity, lower bearing loads and therefore greater durability. The stiffness on the hub body serves to distribute the load more evenly on the spokes. Drive and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The super reliable EXP toothed pulley freehub system with its large contact surface and 36 engagement points ensures extremely direct and reliable power transmission.
BEAST COMPONENTS Road 28" RX60 carbon rims | 24 hole | square finish | black
BEAST COMPONENTS was founded in 2016 by students at the lightweight construction department in Dresden. In view of their origins, it was important from the outset to incorporate the latest scientific methods and state-of-the-art technology into the development of their products. The close cooperation with the Institute for Lightweight Construction at the TU Dresden also helps them to achieve this.
BEAST COMPONENTS products are characterized by their combination of lightweight construction, stability and exceptional appearance. But the company founder is also aware of his social responsibility. Instead of relying on mass production in Asia, all components are manufactured by hand under fair conditions and with high quality standards in Europe and meticulously tested in-house. Because the fiber structure of the components is not hidden behind a layer of lacquer, the high production quality and clean workmanship are obvious.
A holistic approach refers to looking at a challenge as part of a larger context, taking into account all relevant aspects to develop a comprehensive solution. Following this philosophy, Beast designed the RX60 rim as a single unit with the tire. With a tire width of 25 to 28 millimeters, the rim and tire merge almost straight into each other, creating a stable airflow. The result is an aero rim for road bikes that enables higher speeds without compromising on stiffness and handling.
Front tire CONTINENTAL Aero 111 TR 28" | 700 x 26C BlackChili VectranBreaker
The perfect storm! With the Aero 111 Tubeless tires, Continental, in collaboration with the aerodynamics experts from Swiss Side, has succeeded in optimally guiding the air along the rims. This is made possible by 48 so-called vortex generators, small precision-formed air chambers on the tread of the tire. These generate controlled turbulence, which ensures that the airflow sticks to the rim for longer and only stalls at large lateral flow angles. In practice, this not only results in a more aerodynamically efficient wheel and tire system, but also improves crosswind stability and steering stability. The Aero 111 was developed and aerodynamically optimized in combination with DT-Swiss ARC and ERC aero rims. However, the tires can also demonstrate their advantages on rims from other manufacturers. Because the air on the rear wheel is already too turbulent, the Aero 111 is particularly recommended for use on the front wheel.
The carcass construction and rubber compound were largely adopted from Continental's high-end 5000 S TR racing tire. Thanks to only 2 fabric layers under the tread, the rolling resistance is extremely low and the tire can adapt perfectly to the surface. Thanks to the Vectran Breaker puncture protection layer and the grippy Black Chili tread, the reduced number of layers does not have a negative effect on puncture protection.
Rear tire CONTINENTAL Grand Prix 5000 S TR Tubeless 28" | 700 x 28C BlackChili VectranBreaker
Although the Continental Grand Prix 5000 is still one of the fastest and most popular road bike tires, it didn't stop the German manufacturer's developers from launching a tubeless-ready (TR) version that has been improved in all areas.
At first glance, the 5000 S TR is almost indistinguishable from the previous version. However, the familiar Lazer Grip tread structure conceals a completely new design. In contrast to the previous version, the 5000 S TR has only 2 instead of 3 layers of fabric under the tread. This ensures better adaptation to the surface and contributes significantly to the 20% reduction in rolling resistance. Thanks to the Vectran Breaker puncture protection layer and the grippy Black Chili tread inherited from the previous version, the reduced number of plies does not have a negative effect on puncture protection. The sidewalls still consist of 3 layers with a newly added protective layer. This not only improves the puncture protection of the sidewalls by 28%, it also ensures a more stable running of the tire at low air pressures. A new, patented tubeless construction, which does not require a sealing rubber layer, makes the tire 50 grams lighter than the previous version.
Long awaited by many Conti fans, the new 5000 S TR is now also compatible with hookless rims. However, it can still be ridden with classic clincher rims and also with a tube.
The new tubeless tire has already proven its outstanding properties and versatility in racing. Both the world champion title in the individual time trial and the victory at Paris-Roubaix were won on the 5000 ST R.
Spokes SAPIM CX-Ray silver
With the CX-Ray, Sapim has succeeded in developing an exceptional spoke. In addition to its low weight, it has an exceptional load capacity and flexibility. This also results in a wide range of applications. Whether road cyclists or mountain bikers, everyone benefits from these positive properties. In addition, the flattened middle section ensures excellent aerodynamics. The high material quality enables the construction of stable wheels and guarantees a long service life.
Sapim's CX-Ray spokes can be installed in all standard hub holes.
Wheel construction at R2-Bike
Our wheels are assembled entirely by hand by our wheel builders. During the entire assembly process, great importance is attached to ensuring that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to offer a lifetime guarantee against spoke breakage as long as it is not caused by force.
Technical data
Area of application: Road bike RR
Wheel size: 28" (622 x 21)
Rim type: clincher and folding tires
Brake type: Disc brake
Brake disc mount: Center Lock
Hub material: Aluminum
Rim material: Carbon, 1k finish
Spoke material: Stainless steel
Inner width: 21 mm
Outer width: 28.5 mm
Rim height: 60 mm
Offset: none
Number of holes: front 24 / rear 24
Spokes: Sapim CX-Ray 2.0 | 0.9 - 2.2 | 2.0, silver
Spoking pattern: front 2-crossed | rear 2-crossed
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearings: 2x industrial bearings
Rear bearing: 4x industrial bearings
Freehub compatibility: 11-, 12-speed Shimano Road
Freehub type: Ratchet EXP, 2 pulleys, 36 engagement points
recommended tire width: 25 mm - 28 mm
maximum tire pressure: 7 bar (25 mm tire width), 6.2 bar (28 mm tire width)
maximum system weight: n.a. (rider, bike, clothing and possibly luggage)
tubeless capable: yes
Valve hole: Presta valve (SV)
Color rim / finish: black / square carbon, satin finish
Color decor: grey
Color hubs: black with white-red decals
Weight according to manufacturer: n.a.
Weight self-weighed: 2112g (set incl. rim tape, valves and tires), 994g (front wheel), 1117g (rear wheel)
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x CONTINENTAL Aero 111 TR 28" | 700 x 26C BlackChili VectranBreaker tire
1x CONTINENTAL Grand Prix 5000 S TR Tubeless 28" | 700 x 28C BlackChili VectranBreaker tire
1x wheel bag
2x tubeless valve (already mounted)
Tubeless rim tape (already mounted)
