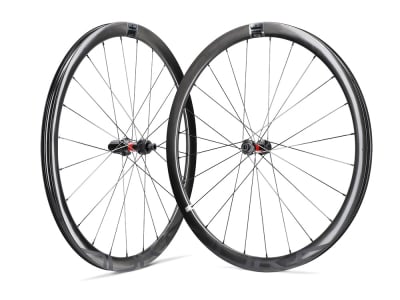

R2BIKE wheelset 28" Disc RR | DT Swiss 240 EXP Straightpull Center Lock | Duke Baccara 36 Ultra SLR2 | Sapim CX-Ray
Application: Road bike RR
Road cyclists are looking for the best compromise between weight, aerodynamics and stiffness. The combination of Duke Carbon rims and the indestructible DT Swiss 240 hubs should therefore always be on the shortlist. The balanced selection of components guarantees you high reliability and a long service life.
DT Swiss 240 EXP hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the new DT Swiss 240 hubs. These properties have been achieved thanks to the Ratchet EXP technology. This not only means that the hubs have fewer components and therefore lower weight and less wear, it also allows the bearing to be positioned much further out on the drive side. The greater distance between the bearings results in greater hub rigidity, lower bearing loads and therefore greater durability. The stiffness on the hub body serves to distribute the load more evenly on the spokes. Drive and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The super reliable toothed pulley freehub system with its large contact surface and 36 engagement points ensures extremely direct and reliable power transmission.
Duke Baccara 36 SLR2 Ultra rims
Summit conquerors will be delighted with this lightweight rim. Duke has broken all limits with this rim. A weight of approx. 300g with a rim height of 36 mm is unrivaled. Nevertheless, safety has not been spared, as it is approved for a system weight of 95 kg.
How did the French achieve this? They took a closer look at the individual elements of the rim and looked for ways to optimize them. In particular, a new resin was used. This not only made it possible to reduce weight, but also to increase impact resistance. Thanks to the SLS2 production process, no reworking or painting is necessary after production. The use of highly modular carbon fibres also improves the inherent damping, which in turn has a positive effect on riding comfort. The modified design enables unrestricted tubeless use and brings measurable aerodynamic benefits.
In the Ultra version, material has also been saved in non-critical areas in order to reduce weight without compromising functionality.
The rims have an asymmetrical rim profile, which enables a more even spoke angle. This optimization of the spoke angle has a number of advantages. The tension on both sides can be better aligned, which is beneficial to the durability of the spokes and the wheel as a whole. The normally direction-dependent lateral stiffness is also equalized, making the wheel more stable.
SAPIM CX-Ray spokes
With the CX-Ray, Sapim has succeeded in developing an exceptional spoke. In addition to its low weight, it has an exceptional load capacity and flexibility. This also results in a wide range of applications. Whether road cyclists or mountain bikers, everyone benefits from these positive characteristics. In addition, the flattened middle section ensures excellent aerodynamics. The high material quality enables the construction of stable wheels and guarantees a long service life.
Sapim's CX-Ray spokes can be installed in all standard hub holes.
Wheel construction at R2-Bike
Our wheels are assembled entirely by hand by our wheel builders. During the entire assembly process, great importance is attached to ensuring that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to give the first owner a lifetime guarantee against spoke breakage, as long as it was not caused by force.
The following services are also included for first-time buyers:
You get a universal wheel bag for all common sizes included.
You will receive a spare spoke with nipple in all required spoke lengths so that you can repair the wheel quickly after an accident.
Within 2 years of purchase, you will receive a free initial inspection of the wheel, during which the resulting work is completely free of charge. Only shipping costs are incurred.
You get a crash replacement promise: If your wheel is damaged due to force majeure within 2 years of purchase, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.
Please note
The wheelset is supplied with a Shimano freehub body. A Sram XDR freehub body is included in the scope of delivery. This can be exchanged by simple conversion without tools.
Technical data
Area of application: Road bike RR
Wheel size: 28"
Rim type: clincher and folding tires
Brake type: Disc brake
Brake pads: -
Rim material: Carbon
Inner width: 21 mm
Outer width: 27.6 mm
Rim height: 36 mm
Offset: 2.0 mm
Number of holes: front 24 / rear 24
Spokes: Sapim CX-Ray 2.0 | 0.9 - 2.2 | 2.0, black
Spoking pattern: front 2-crossed | rear 2-crossed
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Brake rotor mount: Center Lock
Front bearing: 2x industrial bearings
Rear bearing: 4x industrial bearings
Freehub compatibility: 11-, 12-speed Shimano Road (mounted), 10-speed only with optional spacer + Sram XDR 12-speed (included)
Freehub type: Ratchet EXP, 2 toothed pulleys, 36 ratchet points
recommended tire width: 25-53 mm
max. air pressure: max. 7.5 bar (with 28 mm tire width)
maximum system weight: 95 kg (rider, bike, clothing and possibly luggage)
tubeless capable: yes
Valve hole: Presta valve (SV)
Color rim / finish: black / UD carbon satin finish
Color decor: white
Color hubs: black with white-red lettering
Weight according to manufacturer: -
Weight self-weighed: 1138g (set), 523g (front wheel), 615g (rear wheel)
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x DT Swiss freehub body Sram XDR
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
