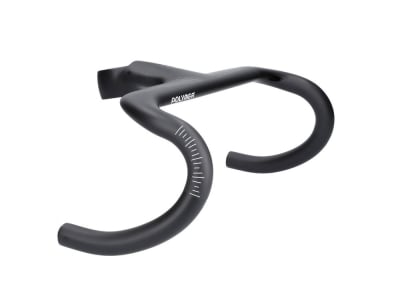

POLYMER WORKSHOP Stem-Handlebar-Unit Sculpture | 380 mm 110 mm

Description

POLYMER WORKSHOP stem/handlebar unit Sculpture | 380 mm

The young Danish company has a clear focus on developing innovative products of the highest quality that help you take your performance and riding experience on the bike to the next level. To meet their high standards, Polymer Workshop works with leading experts in the bike industry, from designers to manufacturers. They select their partners with the utmost care and combine the knowledge of successful athletes with the know-how of material, design and technology experts.

The name says it all: the Sculpture stem handlebar unit is a visual highlight on every modern race bike. With its flat, aerodynamic profile, it not only cuts through the air with minimal resistance, its ingenious design also helps you to ride in a more aerodynamic position on the bike. This is primarily achieved by the extra-long reach of 90 millimeters, which gives you more contact surface on the forearms in the aero-hood position (forearms parallel to the ground). The better support on the arms significantly relieves the back muscles. The narrow handlebar width of 360 or 380 millimetres in the hoods reduces the frontal area of the rider and bike system and thus reduces air resistance at a crucial point. So that you don't have to compromise on bike control, the large flare angle of 9 degrees offers plenty of control and the best power transfer in the drops. Another special feature of the Sculpture cockpit is the minimalist grip pattern on the top bar, which is intended to improve grip and ergonomics together with the drop-shaped top bar design. Despite its flat design, the handlebar-stem unit weighs just 320 grams.
For a seamless transition to the frame, you will find matching 3D-printed headset adapters for a variety of established high-end frames in our store. The cable routing is of course fully integrated through the handlebars and stem.

NOTE: You can find the matching Polymer Workshop headset adapter in our store.

Technical data:

Area of application: Road bike, Gravel
Material: UD carbon
Top link shape: aero
Lower link shape: compact
Cable routing: fully integrated (routed through the stem)
Handlebar width top link (center - center): 380 mm
Handlebar width lower link (center - center): 420 mm
Reach: 90 mm
Drop: 130 mm
Flare: 9°
Offset/stem angle: -10°
Stem length: 100 mm, 110 mm, 120 mm or 130 mm
Steerer tube diameter: 1 1/8"
Steerer clamp height: 35 mm
max. rider weight: n.a.
max. tightening torque: 4 Nm
Finish: UD carbon, matt
Color: black matt

Weight according to manufacturer: 320g - 340g
Weight self-weighed: 337g (110 mm)

Scope of delivery:

1x handlebar stem unit Sculpture | 380 mm
1x aluminum Ahead cap including aluminum bolt
1x 3 mm spacer
1x 5 mm spacer
1x 10 mm spacer
