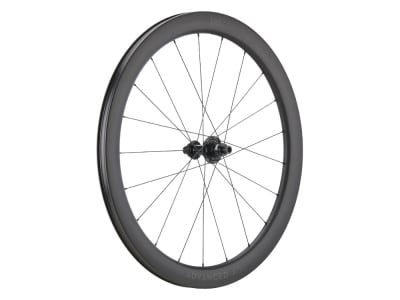

NEWMEN rear wheel 28" road bike Advanced A.50 Center Lock | 12x142 mm thru axle | Shimano Road
Whether on the test bench, the legendary spring classics or on a long tour, Newmen's Advanced wheels perform at the highest level in every application and represent the right suspension for the ambitious racer. With them you get the technology of the Streem series at a great price-performance ratio.
The Advanced A.50 rear wheel is a real all-rounder. Whether you're riding fast on the flat, in hilly terrain or in a sprint finish, it won't let you down and with it on your bike you'll always be at the front of the field.
Advanced carbon rim
The Newmen carbon rim is made exclusively from high-quality UD carbon fibers. Its shape achieves excellent values in all wind conditions and the profile remains neutral even in crosswinds. Thanks to the enormous inner width of 23 mm, it has been optimized for tires with a width of 28 - 30 mm. This allows the air pressure to be lowered and generates more grip and greater comfort. Newmen has opted for a hook profile, which offers both tubeless tires and classic clincher tires with inner tubes a secure hold at all times. In order to keep the high-quality UD carbon look visible and save weight, only a wafer-thin layer of clear lacquer is applied after the production process.
Fade R hub
At the center are Newmen's own Fade R hubs, which are equipped with high-quality, double-sealed industrial bearings for durability under all conditions. In contrast to the tried and tested FADE Road hubs, this version has been reinforced on the inside. This means that any forces that occur can be better compensated and it is even approved for use on e-road bikes. The combination of J-bend and straight-pull spoking is striking. This has made it possible to reduce the number of spokes while maintaining the same rigidity. This saves weight and improves aerodynamics. The 36-toothed pawl freewheel ensures deceleration-free acceleration. Furthermore, Newmen uses a special grease which has a 25% higher water absorption capacity and a very high bleeding temperature and protects the bearings from premature wear and corrosion.
Sapim Race spokes
By far the most popular spoke in the Sapim range is the indestructible Race. Despite its still low weight, it can be used to build the most stable wheels. The elastic middle section easily copes with high load peaks. In addition, the elimination of the highly stressed spoke bend eliminates a potential breaking point and thus further minimizes the susceptibility to punctures. A real all-rounder with which you can set off on any adventure.
Technical data:
Area of application: Road bike, e-road bike up to 60 Nm torque
Wheel size: 28" (ETRTO: 622 x 23 mm)
Rim type: clincher (clincher and folding tires)
Brake type: only for disc brakes
Brake rotor mount: Center Lock
Material: Rim: Carbon; Hub: Aluminum
Internal width: 23 mm
Outer width: 32.5 mm
Rim height: 50 mm
Number of holes: 21 holes
Axle standard: 12x142 mm thru axle
Bearings: 4x industrial bearings
Freehub compatibility: 11-, 12-speed Shimano Road, 11-speed SRAM Road
Freewheel type: pawl freewheel with 3 pawls and 36 ratchets
Spokes: 21x Sapim Race 2.0 | 1.8 | 2.0 Straightpull / J-Bend (black)
Spoking pattern: Disc side: radial | Drive side: triple crossed
tubeless compatible: yes
recommended tire width: 25 - 32 mm, aerodynamically optimized for 28 - 30 mm width
max. air pressure: n.a.
max. system weight: 130 kg (rider, bike, clothing and possibly luggage)
Color rim: black matt with grey decals
Color hub: black matt
Weight according to manufacturer: 800g
Weight self-weighed: 773g
Scope of delivery:
1x NEWMEN rear wheel 28" road bike Advanced A.50 Center Lock | 12x142 mm thru axle | Shimano Road
Note:
Contrary to the illustrations, the rear wheel is of course supplied with a Shimano Road freehub body.
