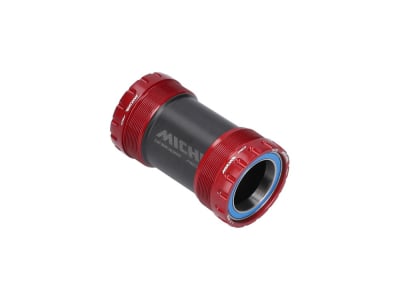

MICHE bottom bracket T47 RD EC 24/30 ceramic for Hollowtech II / 30 mm crankshafts
If the frame is the skeleton of the bike, then the bottom bracket is its beating heart. It absorbs the power generated by the rider, distributes it efficiently and transforms it into propulsion. Miche bottom brackets have been developed to reduce friction to a minimum, optimize power transmission and ensure a long service life. The result: consistent performance and maximum reliability over a long period of time.
The Miche T47 EC Race Division is manufactured with high-quality 7075-T6 aluminum bearing shells. High-end ceramic bearings from CeramicSpeed ensure silky smooth running. The SpeedBalls used by CeramicSpeed are 15% harder than those of the competition and can absorb considerably more force. They also have an incredibly smooth surface, thereby reducing rolling resistance to a minimum. Thanks to the two different sets of dust caps supplied, the bottom bracket is suitable for Hollowtech II crankshafts with a diameter of 24 millimetres as well as for cranks with a shaft diameter of 30 millimetres.
Technical data:
Area of application: Road, Gravel
Bearing shell material: Aluminum 7075 T6
Bearing material: Silicon nitride ceramic (balls), stainless steel (inner ring and outer ring)
Bottom bracket type: ThreadFit T47 external
Bottom bracket shell width: 67 - 77 mm
Bottom bracket shell Ø: T47 (47 mm)
Crank shaft diameter: 24 mm or 30 mm
Crank compatibility: Shimano Hollowtech II Gravel, FSA Gravel, Rotor Gravel and others with 24 mm shaft / road bike cranks with 30 mm shaft
Tool holder: T47 bottom bracket tool with 16 cams (Ø 52.2 mm)
Color: red
Weight according to manufacturer: 136g
Weight when weighed: 113g
Scope of delivery:
1x MICHE bottom bracket T47 RD EC 24/30 ceramic for Hollowtech II / 30 mm crankshafts
2x dust caps for 30 mm crankshaft
1x wave washer spring for 30 mm crankshaft
2x dust caps for 24 mm crankshaft
1x wave washer spring for 24 mm crankshaft
1x quick start guide
