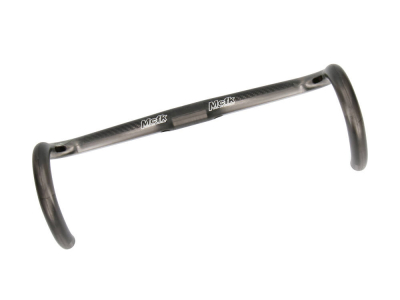

MCFK handlebars carbon road bike in 3K look matt compact | ICR ready
With a weight of only 147 grams at 38 cm width and oversize clamping, this handlebar is the lightest series product with outstanding stability values on the market. At MCFK, all components are manufactured by hand in Leipzig. A sense of proportion and high standards for our own products ensure consistent quality and durability and ensure optimum power transmission even during hard sprinting.
These road bike handlebars meet the highest requirements and set new standards in this area. Load-oriented carbon layers create an almost unique balance of lightweight construction, stiffness and comfortable compliance in a handlebar with compact, ergonomic geometry. For a tidy cockpit, the brake lines can be routed internally (Integrated Cable Routing). The lines can be routed to the frame via openings next to the stem or directly through the stem into the headset via an opening on the stem clamp. If you prefer external cable routing, there are cable ducts on the underside of the handlebars so that the cables can be neatly routed and are neither visually nor tangibly disruptive. For use with the Shimano EW-RS910 Di2 junction integrated in the handlebar end, there is a hole on the lower side of the handlebar.
Made in Germany!
Technical data:
Area of application: road bike, cyclocross, gravel
Material: 3K carbon
Top bar shape: ergonomic
Lower link shape: compact
Cable routing: fully integrated (routed through the stem), semi-integrated (openings next to the stem clamp) or external cable ducts
Handlebar clamp Ø: 31.8 mm, tapered down to 27.5 mm
Handlebar width upper handlebar (center - center): 360 mm, 380 mm, 400 mm, 420 mm or 440 mm
Handlebar width top link (outer - outer): 410 mm, 430 mm, 450mm, 470 mm or 490 mm
Lower link diameter: 24 mm
Reach: 77 mm
Drop: 130 mm
Flare: 4°
Inside bend: 2°
Backsweep: 5°
max. rider weight (rider, clothing and luggage): 100 kg
max. permissible torque: stem 4 Nm | components 4 Nm
look/finish: 3K carbon, matt
Weight according to manufacturer: from 147g (38 cm width)
Weight weighed: 167g (42 cm width)
Scope of delivery: 1x MCFK handlebar carbon road bike 3K look matt compact | ICR ready
Instruction manual Road handlebars | EN
MPN:
LNK_RR_318_3KM_440_DI2
