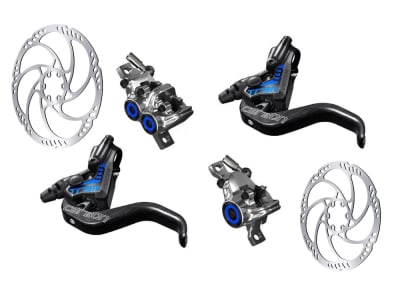

MAGURA Disc Brake MT Trail SL | Set | Storm HC 203/180 mm Brake Rotors
The Magura MT Trail SL is the optimum in terms of braking performance combined with weight in the Magura range. This brake perfectly occupies the important and exciting range between MT8 and MT7, giving bikers the ultimate choice for their use, their bike and - very importantly - their weight, to choose the right braking performance. In addition, MAGURA will offer a selection of different Brake Pads and rotor sizes for every application.
With its 4 brake pistons at the front and 2 brake pistons at the rear, it is optimally designed for trail and enduro use. With a weight of just 453 grams (without disc), it is one of the absolute lightweights in its segment. The low weight is achieved, among other things, by the master unit made of Magura's newly developed Carbotecture SL material, which consists of a high proportion of carbon fibers embedded in a thermoplastic matrix. Thanks to the Carboflow process, Magura can use this material in a load-optimized manner and create homogeneous surfaces.
Magura has also ensured that the MT Trail SL is easy to use. The lever width of the ergonomic 1-finger HC brake lever can be adjusted using a hexagon socket. The brake pistons are magnetic for easy pad changes, guaranteeing a perfect fit of the Brake Pads.
The new Storm HC rotor ensures optimum heat dissipation. Compared to its predecessor, it is now 10% lighter and has an optimized friction area. This increases braking performance with lower wear values.
NOTE: thanks to the flip-flop design of the brake lever, it can be used on the right or left side.
MAGURA Storm HC 203/180 mm | 6-hole brake rotor
Magura has significantly revised the Storm HC rotors compared to the normal Storm rotor and improved them in all areas. For example, it is more heat-resistant and offers consistent braking performance under extreme loads. Compared to its Storm brothers, the rotor is slightly thicker at 2 mm, which has a positive effect on noise development.
Technical specification MT Trail:
Area of application: Trail, Enduro, Transalp
Brake caliper material: Forged aluminum
Material of master unit: Carbon (Carbotecture SL)
Brake lever material: Carbon
Hardware mounting material: Steel
Piston front wheel: 4
Rear wheel piston: 2
Brake mounting: Postmount
Brake fluid: Magura Royal Blood mineral oil
Brake hose: Plastic
Front Brake Pad: Magura 7.P
Rear Brake Pad: Magura 7.P
Brake lever design: 1-finger HC
Reach adjustment: yes, with tool
Pressure point adjustment: no
Mounting: on both sides (FlipFlop)
Clamp: Split
Cable: Magura Disc Tube (960 mm front, 2200 mm rear)
Color: black-blue (sensor), carbon (brake lever), silver-blue (brake caliper)
Technical specification Storm HC:
Material: steel
Thickness of friction ring: 2.0 mm
Disc diameter: 203 mm and 180 mm
Brake rotor mount: 6-hole
Color: silver
Weight according to manufacturer: n.a.
Weight weighed: 768g
Scope of delivery:
1x MAGURA MT Trail SL brake set for front and rear wheel
1x brake disk 203 mm incl. 6 Torx fastening screws made of steel
1x brake disk 180 mm incl. 6 Torx fastening screws made of steel
