Description
MAGPED pedals ENDURO2 magnetic | 150N black

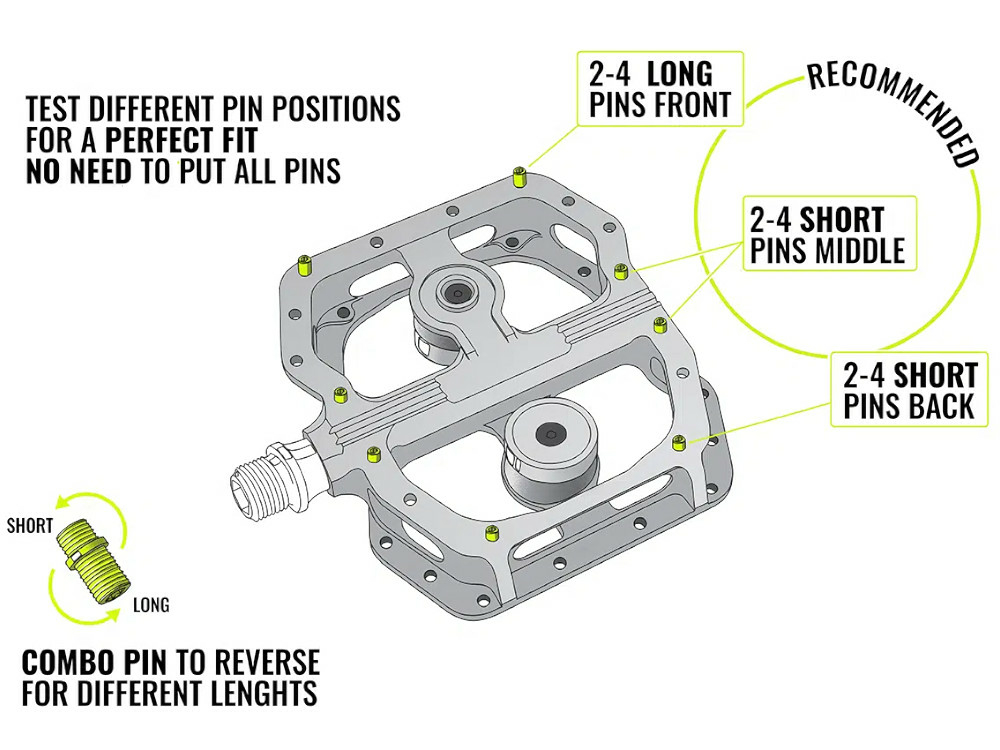

The best-selling magped pedals are now even better than before. The double-sided magnetic pedal for trail, enduro and downhill use is CNC milled from an aluminum block and is 23% lighter despite the larger contact area and higher resilience. For a more resistant bearing , an inner IGUS plain bearing is now used in addition to 2 outer, sealed ball bearings. Another innovative feature are the variable SWITCH pins, which can be mounted with a height of 9 millimeters and 11 millimeters. Another advantage of the SWITCH pins is that they can be dismantled from the underside in the event of a broken pin.
The use of the patented magnet mechanism enables you to detach your foot from the pedal safely, quickly and easily at any time. The risk of falling and injury is reduced to an absolute minimum compared to pedals with fixed connections - and the head remains free for enjoyable biking without fear.
The magped ENDURO2 pedal with 150N magnet is recommended for less sporty bikers and people up to approx. 80 kg.
Round kick
The magped pedal enables a round step, as both the muscle - extensors (70%) as well as the muscle - flexors (30%) of the leg muscles are stressed evenly. Even longer bike tours become pure pleasure.
Weight
The magped pedal is a modern, high-quality flat pedal made from lightweight CNC-milled aluminum and a CrMo spindle. Despite the additional magnet system, all magped pedals are no heavier than comparable high-end pedals.
position
The pedal allows a slight rotation of the shoe and thus protects the joints when pedaling. The position can also be varied forwards and backwards without changing the traction force, so it is easy to find the ideal position for both the ascent and the descent.
traction
Depending on the selected magnet strength, the shoe is held magnetically on the pedal with up to 20 kg of traction. The pulling force acts mainly vertically and a lateral detachment from the pedal is possible with almost no noticeable resistance. But quick and easy detachment directly upwards in critical situations is also not a problem.
cleat
The shoe plate made of rust-treated special steel can be mounted on any SPD-compatible bike shoe with 2 screws in just a few minutes. In contrast to other systems, dirt is not a problem for the magped. In addition, the risk of stumbling while walking is reduced and walking comfort is greatly improved.
Technology
The magped pedal is equipped with 2 high-quality, sealed industrial ball bearings and a plain bearing. The height of the neodymium high-performance magnet can be adjusted using a special integrated polymer spring.
Technical specifications:
intended use : enduro, trail, freeride
Material pedal axle: CroMo steel
Material pedal body: aluminum
Material pins: steel
Height: 16 mm (without pin)
Pedal contact area: not specified
Number of pins: 10 pins per pedal side, changeable, two different lengths can be set for each pin
bearing : 2x deep groove ball bearings, 1x IGUS plain bearing
Gasket: rubbing sealed
Compatibility shoes: Shimano SPD system
max. driver weight: not specified (driver, clothing and possibly luggage)
Color: Black
Weight according to the manufacturer: 447g
Weight weighed: 421g (without metal plates for Shimano SPD compatible shoes, without pins)
Scope of delivery:
1x pair of MAGPED pedals ENDURO2 | 150N (L+R) black
1x pair of magnets
1x pair of metal plates for Shimano SPD compatible shoes
1x Allen key
magnetic screws in 2 lengths
