LUPINE e-bike headlight SL SF Classic for cargo bikes | StVZO
Lupine's e-bike lamp with StVZO approval for road traffic comes here in the Classic version. Glare-free low beam, switchable 1300 lumen high beam and Lupine's proven lens technology make it the first choice for your bike tours in the dark season. Its automatic daytime running light increases your safety in road traffic.
The version for cargo bikes has an extra-long cable for the remote control. This means you can also enjoy all the benefits of this light at the rear, where you usually sit on this type of bike.
Secure mounting

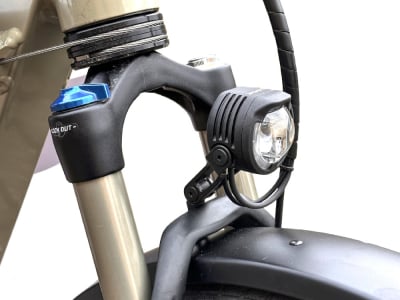

The SL F Classic is attached to the fork bridge or, in the case of cargo bikes, to the steerer tube. There it sits securely and illuminates everything evenly in the middle. You also save space on the handlebars for mounting other accessories.
For mounting on the e-bike drive, the light has a 2 m long cable with open ends. This must be connected to a connection cable suitable for the respective system. This means that the SL F Classic can still be used when changing bikes.
As small and robust as possible
The SL is incomparable. It owes its unique appearance not only to the striking daytime running light, but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects the SL from shocks, dust and water and meets the IP68 standard with flying colors. It also has genuine approval in accordance with the StVZO for pedelecs under 25 km/h.
The light has a small button on the underside for switching it on and off. Otherwise, you can control it via the remote control or the e-bike display.
Sensor-controlled daytime running light
The adjustable stereo sensor system scans your ambient light and switches your SL from daytime running light to low beam in good time. The daytime running light of the StVZO models is continuously supported by the main headlight.
High beam
This is not just a more powerful low beam. When switching to high beam, the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster journeys and detours on the trail are no longer a problem. For safety and improved comfort, the light can be switched back and forth using the wired remote control.
Please use the high beam wisely and switch off in oncoming traffic.
Light years ahead
At the heart of the Lupine SL are 18 Osram LEDs and the world's first 26° Dual Aspheric Lens System for bicycle lights. These not only illuminate far away, but also light up the close range evenly.
Technical data:
Material: Aluminum 6061-T6
Dimensions (LxWxH): 49 x 50 x 48 mm
Supply voltage: 6 V -15 V
Consumption: 1.5 W daytime running light, 9 W low beam, 16 W high beam
Power supply: E-bike drive
E-bike compatibility: all e-bikes with at least 12 W light output (specific connection cable not included)
Light source: 18x Osram Compact CL LED
Luminosity: 900 lumens low beam, 1300 lumens high beam
Optics: 26° Dual Aspheric Lens System
Functions: Daytime running light, low beam, high beam with remote control
Communication: -
StVZO approval: K license plate (K1552), for e-bikes up to 25 km/h
Bracket: Bracket for fork crown or on the steerer tube
Color: matt black anodized
Weight according to manufacturer: 100g (lamp head)
Weight when weighed: 203g (including accessories)
Scope of delivery:
1x Lupine e-bike lamp head SL SF incl. 2 m power supply cable with open ends
1x cable remote control with 257 cm long cable
1x SL F bracket
1x instruction manual
Please note
The bike with attachments shown in some of the pictures is for illustrative purposes only and is not included in the scope of delivery.
