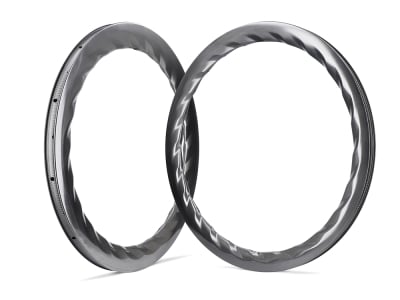

LIGHT BICYCLE Rim 28" Set Falcon Pro Turbo Disc 50 mm | 65 mm | UD-Carbon glossy | 24-hole
With their extravagant design, the Light Bicycle Falcon Pro Turbo rims are not just a visual highlight. With their modern rim profile, they are also state-of-the-art in technical terms and can show off their strengths on a wide range of wheel types. With an inner width of 25 millimetres and an outer width of 35 millimetres, they not only integrate 28 to 32 millimetre wide road bike tires perfectly into the rim profile in terms of aerodynamics, they also provide excellent support for all-road and gravel tires up to a width of 50 millimetres at low air pressures. In addition to the rim height of 40 millimeters, the tapered turbo rim profile helps to reduce drag and improve crosswind stability at the same time. The shape also helps to improve the stiffness of the rims, which is reflected in a more direct power transmission in the assembled wheel. The tubeless inner profile with rim hooks ensures a secure tire fit on the rims.
Despite the elaborate rim design, the weight of the rims is extremely low thanks to a complex manufacturing process.
BlackTek
Thanks to this special manufacturing process, the Falcon Pro rims come out of the autoclave as a finished product and require no post-processing. This not only makes the manufacturing process more environmentally friendly than conventional methods, the rim surface is also significantly harder and therefore more resistant to mechanical stresses when driving.
Thinner Laminates Orientation-Optimized
Extra-thin and lightweight carbon prepregs are used in the production of Falcon Pro rims. This makes it possible to stack more carbon layers in critical areas to achieve greater stability and to keep the overall weight of the rims extremely low without any weight disadvantages.
We would be happy to provide you with a quote for a complete custom wheelset with hubs and spokes of your choice. Please send us an e-mail to [email protected]!
Technical data:
Area of application: road bike, all-road, gravel
Material: T700 and T800 carbon
Rim type: clincher (clincher and folding tires)
Brake type: for disc brakes only
ETRTO: 622x25
ERD: 560 mm and 510 mm
Inner width: 25.0 mm
Outer width: max. 34.5 mm and 35 mm
Rim height: 50 mm and 65 mm
Offset: none (symmetrical)
Number of holes: 24 holes
tubeless compatible: yes
ASTM classification: n/a
recommended tire width: 28 mm to 50 mm
maximum tire pressure: 5.52 bar (with 28 mm tire width)
maximum system weight: 135 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1180 - 1320 N
spoke hole angle: +/-7°
valve hole: 6 mm (SV)
Finish: UD Carbon, glossy
color: black
Weight according to manufacturer: 410g (50 mm, +/-15g), 500g (65 mm, +/-15g)
Weight as weighed: 400g (50 mm), 482g (60 mm)
Scope of delivery:
1x LIGHT BICYCLE 28" Falcon Pro Turbo Disc 50 mm | glossy UD carbon | 24-hole rim
1x LIGHT BICYCLE 28" Falcon Pro Turbo Disc 65 mm | glossy UD carbon | 24-hole rim
