Description

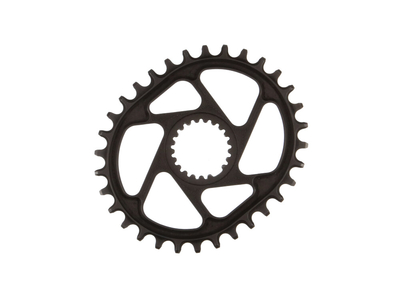

LEONARDI RACING Chainring GECKO TRACK oval Direct Mount for Shimano 12 Crank
Lightweight and stiff Direct Mount chainring by Leonardi Racing. Direct mount chainrings provide optimal setup for Shimano 12-speed drives. These chainrings are screwed directly to the crank arm and thus save compared to conventional spider / chainring combination a lot of weight and are also much more torsionally rigid. The used 7075 T6 aluminum alloy additionally ensures low wear. Special teeth in Narrow Wide Design effectively prevent the chain from jumping off. The principle follows that of the SRAM XX1 chainrings.
Ovalization of the chainring enhances performance through powertrain variation and drag optimization. When pedaling with the legs, the natural strengths and weaknesses are reconciled. Thus, a better use of the stronger muscle groups is achieved and in the weaker muscles a balance in the working path (lower stroke) created.
NOTE: The chainring only works in conjunction with Shimano 12-speed chains.
Technical specifications:
intended use : MTB
Material: 7075 T6 aluminum
Technology: Narrow Wide, GECKO (direct mount), TRACK (Ovalization)
bolt circle diameter : -
Attachment: Shimano Direct Mount
Number of teeth: 28, 30, 32 or 34 teeth
Compatibility cranks : Shimano XTR M9100 | XT M8100 | SLX M7100
Compatibility chain: Shimano 12-speed
Assembly: -
chain line : depending on used crank
Offset: 0 mm
Adjustment options: none
Range (ovalization): not specified
Timing (force introduction): n / a
Color: black anodized
Weight according to manufacturer: n / a
Weight weighed: 65.1g (32 teeth)
Delivery: 1x Leonardi Racing Gecko Track Direct Mount Chainring
