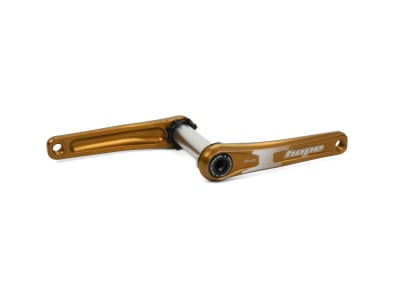

HOPE EVO crankset 83 mm | bronze
Whether you want to ride cross country, all mountain or downhill, the Hope Evo crankset cuts a fine figure everywhere. Thanks to the latest material calculation methods in conjunction with extensive laboratory and field tests, the EVO crank has become 15% lighter and at the same time stiffer compared to the previous version.
The crank arms are forged from 7150 aluminium and then milled. Pullers integrated into the crank arms make it easier to dismantle the crank, which can now be done with just one Allen key. With four available shaft lengths, the crank is very flexible to use. This is also ensured by the option of fitting both a 2x spider and a Hope direct-mount chainring. For the crankshaft diameter of 30 millimetres, Hope offers corresponding bottom brackets for all common bottom bracket housings. As usual with Hope, the Evo crank is also made in Barnoldswick, England and is available in the six typical Hope anodized colors.
NOTE: Contrary to the illustration, the crank is supplied without a chainring.
Technical data:
Application: Cross Country, Marathon, Tour, All Mountain, Enduro, Downhill
Material crank arms: Aluminum 7150
Crankshaft material: Aluminum 7075
Crankshaft diameter: 30 mm
Crank lengths: 155 mm, 165 mm, 170 mm, 175 mm
Spider/chainring mount: Hope
Chainline 1-speed: 56.5 mm
Chainline 2x: inside 52.5 mm, outside 60.5 mm
Q-factor: 182 mm
Bottom bracket compatibility: BSA, BB92, BB30 Pressfit (Pf30)
Chain compatibility: 10-speed, 11-speed or 12-speed
Rider weight: n/a
Color crank arms: bronze
Weight according to manufacturer: 560g (170 mm, crank arms and shaft)
Weight self-weighed: 566g (165 mm, crank arms and shaft)
Scope of delivery: HOPE EVO crankset 83 mm | bronze, including crankshaft and mounting bolts
