Description

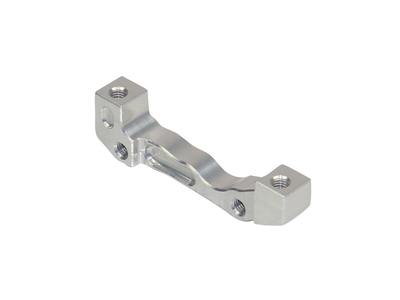

HOPE Adapter Model D IS to PM +43 | for Boxxer before BJ 2010
The adapter allows you to drive 203 mm (fork with IS 6" mount ) brake discs on your Boxxer suspension fork.
The adapter expands the brake disc by +43 mm. The IS2000 standard almost always uses the standard brake disc size of 160 mm (IS 6") on the fork. A standard brake disc size of 140 mm (IS 5") is almost always used on the rear triangle. Based on the standard brake disc size, the adapter increases the brake disc size by the specified information in millimeters.
Fork IS 6" = 160 mm standard size
Rear triangle IS 5" = 140 mm standard size
Note: The adapter only fits Rock Shox Boxxer forks (before 2010) and for brakes with Postmount standard.
Technical data:
Material adapter: aluminum
Material screws: steel
Extension in front: +43 mm
Rear extension: ---
mount mount: IS 6"
mount rear triangle: IS 5"
Mount mount : Post Mount
Color: black, silver
Weight according to the manufacturer: approx. 17g (without screws)
Weight weighed: k. A
Scope of delivery:
1x HOPE adapter model D IS to PM +43 | for Boxxer before BJ 2010
1x mounting screws
