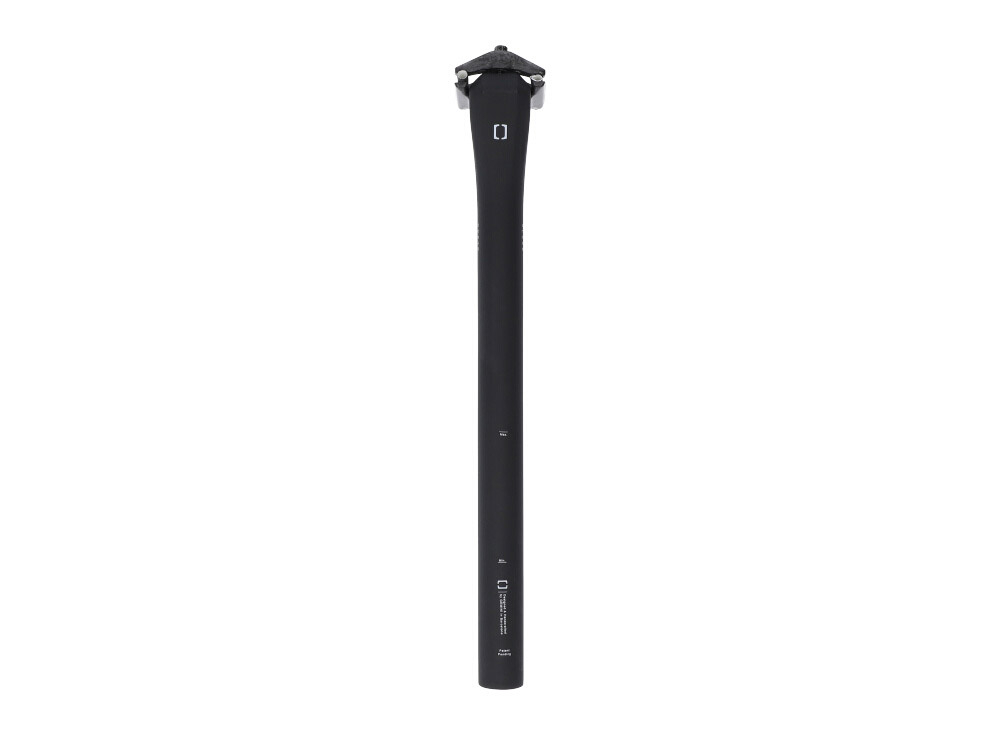

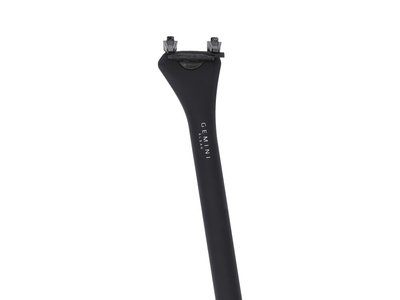

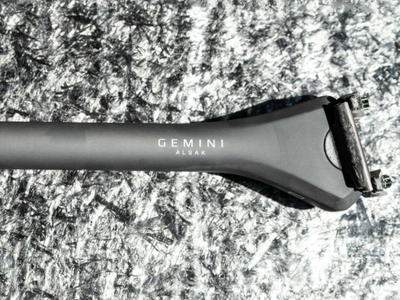

GEMINI seat post Älsak Lightweight UD matt | 30.9mm
The designers of GEMINI have always been surrounded by bicycles from an early age and now apply their acquired knowledge of the production of composite materials, which results from years of experience in the design of motorcycles, bicycles and components, to a high degree of perfection.

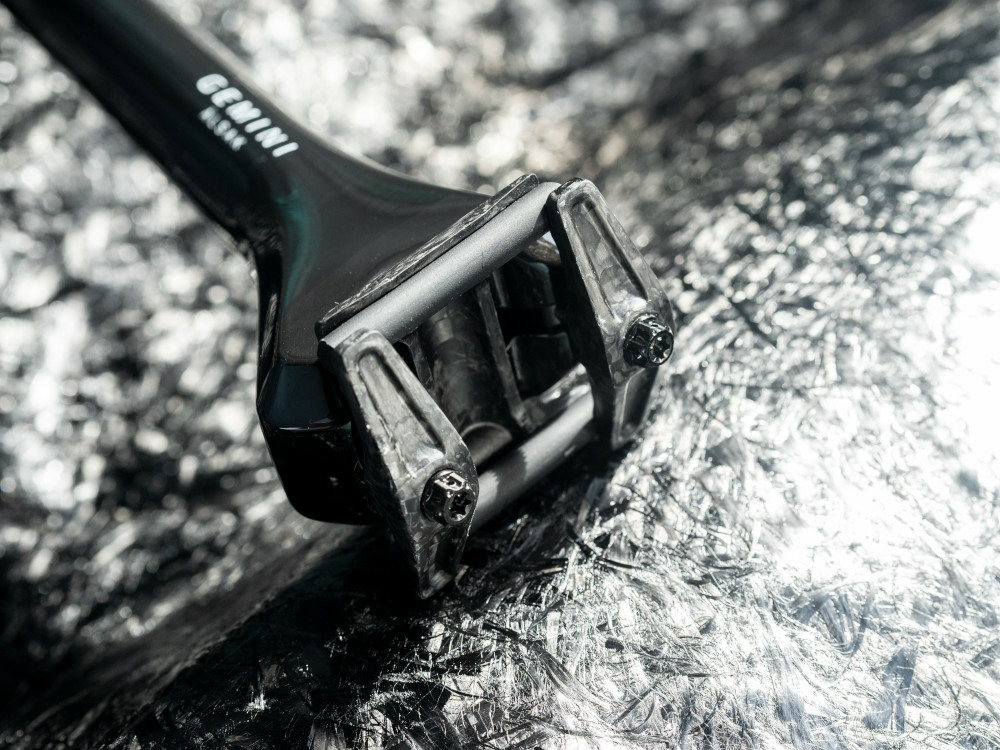

With the newly developed seat post, the Spaniards are now expanding their portfolio. As with the handlebars, great importance was attached to details. The clamping mechanism has been rethought. The result is the patent-pending system in which the saddle is screwed on from above. The threaded barrel for the screw connection is inserted directly into the forged carbon uni body of the seat post. This saves weight and makes the seat post significantly more stable. In addition, care was taken during development to ensure that the clamping surface to the seat stays is as large as possible in order to avoid peak loads and to fix the saddle to the seat post in the best possible way. The post is compatible with any seat post shape, but must not be shortened in length.
The Älsak is made of the best carbon fiber currently available on the market - Mitsubishi MR70. Specially designed for the most demanding customers in the aerospace industry, it is the key to greater comfort and safety. Countless tests in the laboratory and in the field confirm the perfect symbiosis of design and material, which offers optimal conditions for racing.
Screws and threaded barrels made of titanium underline the high-quality impression of the support and ensure that every last possible gram is saved.
intended use : cross country, marathon
Material screws: titanium
Length(A): 250mm 300mm 350mm 400mm
Minimum insertion depth (B): 75 mm, 80 mm, 85 mm, 90 mm
min. possible usable height (C): 100 mm, 145 mm, 190 mm, 235 mm
max. possible usable height (D): 175 mm, 220 mm, 265 mm, 310mm (top edge of seat clamp to bottom edge of seat frame)
Compatibility seat rails: round and oval
max. driver weight: 120 kg (driver, clothing and possibly luggage)
Finish: UD carbon, matt lacquered
Color / logos: black / gray matt
Weight according to the manufacturer: kA
Weight weighed: 95g (27.2mm, 350mm)
Scope of delivery: 1x GEMINI seat post Älsak Lightweight UD matt | 30.9mm
