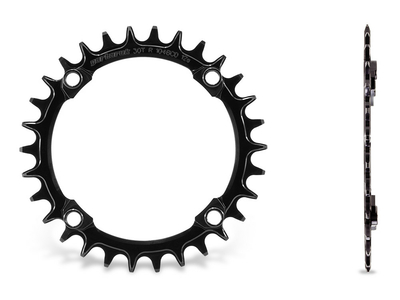

GARBARUK chainring Round 1x narrow-wide LK 104 mm
Garbaruk is a company from Ukraine, which has its roots in motorsport. Designing and manufacturing tuning parts for engines and chassis was one of Garbaruk's passions. Today, the Garbaruk brothers, who are enthusiastic about cycling, use the experience and knowledge they have gained in the production of bicycle parts. All steps from design and production to surface finishing take place under one roof. 7075-T6 aluminum from Germany is the raw material from which Garbaruk's chainrings are painstakingly CNC-milled. The chainrings have some features that differ from the competition.
narrow-wide teeth
In order to keep the chain securely in position even without a chain guide, the teeth have a special profile made up of alternating narrow and wide teeth. So that this is also the case under very rough and rough conditions, the teeth of the Garbaruk chainrings are made approx. 40% longer than normal teeth. Furthermore, the teeth are shaped in such a way that the chain ring works very well even in muddy conditions. Dirt and mud are effectively removed as the chain overflows.
A notice:
The small chainrings with 30 teeth (30 teeth round) and 32 teeth (32 teeth oval) have an integrated thread for attachment. We recommend using a rear derailleur with increased cage tension (SRAM Type 2-3, Shimano Shadow+), which reliably holds the chain in position and prevents the chain from jumping off.
Technical data:
intended use : MTB
Material: Aluminum 7075-T651
Technology: Narrow Wide
bolt circle diameter : 104 mm
Attachment: 4-arm spider
Number of teeth: 30, 32, 34, 36, 38, 40, 42, 44, 46 or 48 teeth
Compatibility cranks : cranks with 104 mm LK
Compatibility chain: 9-speed, 10-speed , 11-speed or 12-speed (SRAM Eagle, SRAM Flattop and Shimano HG+), SRAM Transmission
Mounting position: outside
chain line : dependent on crank used
Offset: 2.0mm (30T), 0mm (32 - 48T)
Adjustment options: none
Range (ovalization): -
Timing (force application): -
Color: black, red, blue, green, purple, orange
Weight according to manufacturer: 36g (30T), 46g (32T), 51g (34T), 58g (36T), 65g (38T), 70g (40T), 74g (42T)
Weight weighed: 43g (32 T)
Scope of delivery: 1x GARBARUK chainring Round 1-fold narrow-wide LK 104 mm
