Description

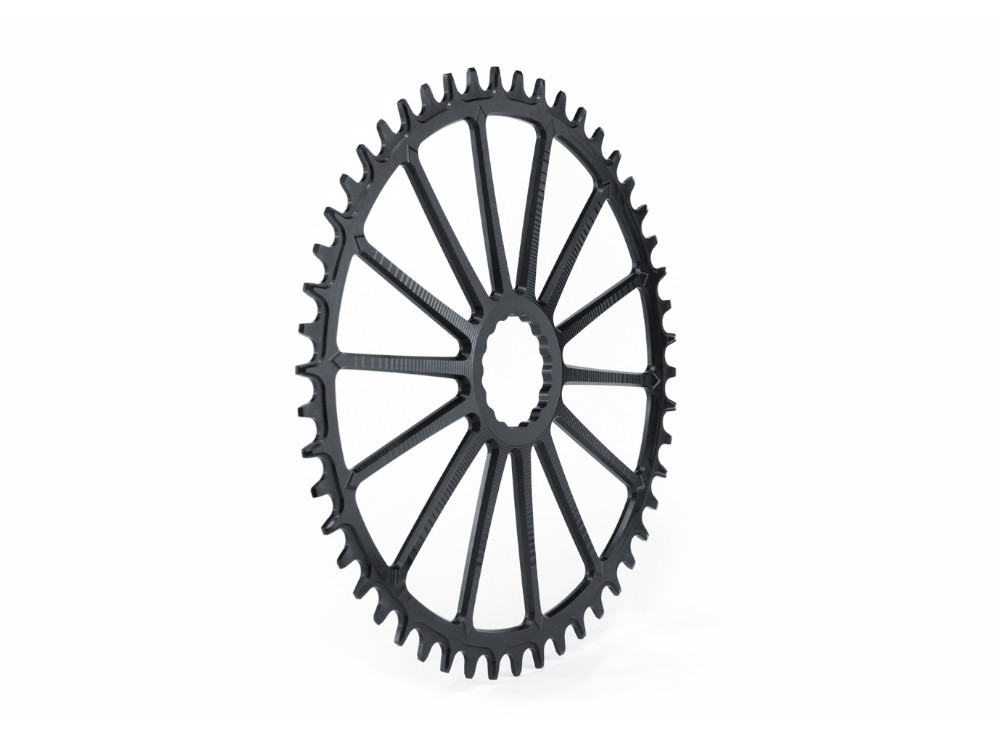

GARBARUK chainring Round Direct Mount | 1-way narrow-wide Easton CINCH | 50 teeth
The ultimate solution from Garbaruk for Easton Road, CX and Gravel cranksets of the EA90, EC90 SL series. In the brand new design, all innovative Garbaruk technologies are included in the overall package.
Garbaruk is a company from Ukraine, which has its roots in motorsport. Design and manufacture of tuning parts for engines and chassis were part of the Garbaruk company. The gained experience and knowledge allow the cycling enthusiasts Garbaruk to flow into the production of bicycle parts today. All steps from design, production to surface finishing are done under one roof. 7075-T6 aluminum from Germany is the raw material from which the chainrings from Garbaruk are elaborately CNC-milled. The chainrings have some features that are different from competitors.
narrow-wide teeth
In order to hold the chain securely in place even without a chain guide, the teeth have a special profile made of alternating narrow and wide teeth. So that this is also possible under very rough and rough conditions, the teeth of the Garbaruk chainrings are made approx. 40% longer than normal teeth. Furthermore, the teeth are shaped so that the chainring works very well even in muddy conditions. Dirt and mud are effectively removed when the chain overflows.
VCLT (Variable ChainLine Technology)
Garbaruk works with all Direct Mount chainrings with a changing chain line , which depends on the number of teeth. A fixed chain line common with other manufacturers, but it must be selected so that even larger chainrings do not touch the chain stay. The smaller the Garbaruk chainring, the closer it can be placed on the chainstay. The chain line becomes even more optimal because the chainring is aligned almost in the center of the cassette.
Direct mount assembly

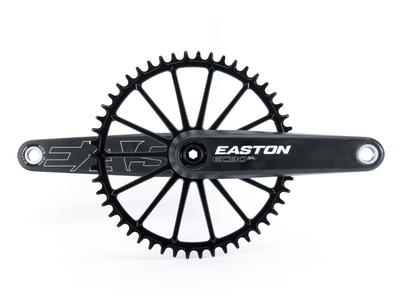

The chainring is mounted directly on the crank arm and replaces the possible previous spider.
The result is a tidy look that saves weight and at the same time offers excellent rigidity.
Technical specifications:
intended use : road bike, cyclocross, gravel
Material: aluminum 7075-T6
Technology: Narrow Wide, VCLT
Direct Mount Standard: Easton / Race Face CINCH
Number of teeth: 50 teeth
Compatibility cranks : Easton EA90, EC90 SL cranks
Compatibility chain: all 12-speed chains (SRAM Eagle, SRAM Flattop, Shimano HG +)
chain line : variable chain line (Garbaruk VCLT Technology)
Offset: variable offset (Garbaruk VCLT technology)
Adjustment options: none
Range (ovalization): -
Timing (force application): -
Color: black, blue, gold, green, orange, red, silver, violet
Weight according to the manufacturer: not specified
Weight weighed: -
Scope of delivery: 1x GARBARUK chainring Round Direct Mount | 1-way narrow-wide Easton CINCH | 50 teeth
