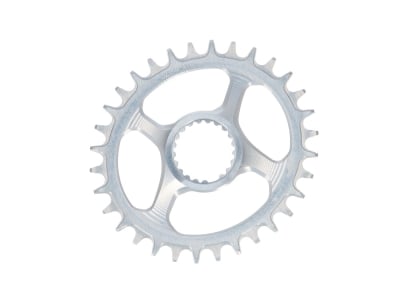

GARBARUK Chainring Melon oval Direct Mount | 1-speed narrow-wide Shimano XTR M9100 | 32 teeth
Garbaruk's ultimate solution for XTR 9100 Series cranksets. In the brand new design, all innovative Garbaruk technologies are included in the overall package.
Garbaruk is a company from Ukraine, which has its roots in motorsport. Designing and manufacturing tuning parts for engines and chassis was one of Garbaruk's passions. Today, the Garbaruk brothers, who are enthusiastic about cycling, use the experience and knowledge they have gained in the production of bicycle parts. All steps from design and production to surface finishing take place under one roof. 7075-T6 aluminum from Germany is the raw material from which Garbaruk's chainrings are painstakingly CNC-milled. The chainrings have some features that differ from the competition.
narrow-wide teeth
In order to keep the chain securely in position even without a chain guide, the teeth have a special profile made up of alternating narrow and wide teeth. So that this is also the case under very rough and rough conditions, the teeth of the Garbaruk chainrings are made approx. 40% longer than normal teeth. Furthermore, the teeth are shaped in such a way that the chain ring works very well even in muddy conditions. Dirt and mud are effectively removed as the chain overflows.
VCLT (Variable ChainLine Technology)
Garbaruk works with all Direct Mount chainrings with a changing chain line that depends on the number of teeth. A fixed chain line is common with other manufacturers, but it must be chosen in such a way that even larger chainrings do not touch the chainstay. The smaller the Garbaruk chainring, the closer it is possible to place it on the chainstay. The chain line is thus even more optimal, since the chainring is aligned almost in the middle of the cassette.
Melon - oval shape
The ovalization of the chainring increases performance by varying the drive train and optimizing resistance. When kicking with the legs, the natural strengths and weaknesses are brought into line. This achieves better use of the stronger muscle groups and creates a balance in the weaker muscles on the way to work (less stroke).
Direct mount assembly
The chainring is mounted directly on the crank arm and replaces the possible previous spider.
The result is a tidy look that saves weight and at the same time offers excellent rigidity.
Technical specifications:
intended use : MTB
Material: Aluminum 7075-T6
Technology: Narrow Wide, Oval, VCLT
Direct mount standard: Shimano direct mount
Number of teeth: 32 teeth
Compatibility cranks: Shimano M9100, MT900, M8100, M7100, M6100
Compatibility chain: 9-speed, 10-speed , 11-speed or 12-speed (SRAM Eagle, SRAM Flattop and Shimano HG+)
chain line : variable chain line (Garbaruk VCLT technology)
Offset: variable offset (Garbaruk VCLT technology)
Adjustment options: none
Range (ovalization): 12%
Timing (force application): 108° after TDC (top dead center)
Color: black, blue, gold, green, orange, red, silver, purple
Weight according to the manufacturer: kA
Weight weighed: 62g
Scope of delivery: 1x chainring GARBARUK Melon oval Direct Mount | 1-speed narrow-wide Shimano XTR M9100 | 32 teeth
