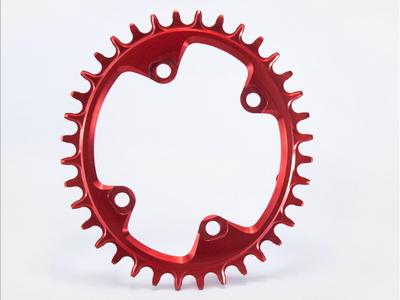

    GARBARUK Chainring Melon oval 1-fach narrow-wide LK 96 Shimano XT-M 8000 Kurbel

    Item no.:
    19595

    Product weight:45g
    Manufacturer:
    Garbaruk
    from 34,50 € UVP: 37,00 €
    You save 6,76 %, that is 2,50 €
    including 19% VAT. excl. Shipping costs
    • available from stock
    Execution
    Color

    Article details

      GARBARUK chainring Melon oval 1-way narrow-wide LK 96 Shimano XT-M 8000 crank

      Garbaruk is a company from Ukraine, which has its roots in motorsports.
      Design and production of tuning parts for engines and undercarriages were part of the Garbaruk company. The experience and knowledge gained have allowed the bicycle-enthusiast Brothers Garbaruk to be integrated into the production of bicycle parts. All steps from design, production to surface refinement take place under one roof.
      7075-T6 Aluminum from Germany is the raw material from which the chainrings from Garbaruk are CNC-milled. The chainrings have some features that differ from competitors.

      narrow-wide teeth

      In order to hold the chain securely even without chain guide, the teeth have a special profile of narrow and wide teeth alternating. To ensure this even under very rough and rough conditions, the teeth of the Garbaruk chainrings are manufactured approx. 40% longer than usual teeth. Furthermore, the teeth are shaped in such a way that even in muddy conditions the chainring works very well. Dirt and mud are effectively removed when spilling the chain.

      We recommend using a shifter with increased cage tension (SRAM Type 2-3, Shimano Shadow +) which keeps the chain in place and prevents the chain from jumping.

      oval shape

      The ovalisation of the chainring increases performance by varying the drive train and optimizing the resistance. When walking with the legs, the natural strengths and weaknesses are brought into harmony. In this way a better utilization of the stronger muscle groups is achieved and in the weaker muscles a compensation in the working path (lower stroke) is created.

      VCLT (Variable ChainLine Technology)

      Garbaruk works with chain blades with a changing chain line which depends on the number of teeth. For other manufacturers, a fixed chain line standard, but it must be selected in such a way that even larger chainrings do not touch the chain strut.
      The smaller the cooking bar chain, the closer it is to place it on the chain strut.
      This makes the chain line even more ideal as the chainring is almost centered with the cassette.


      Technical specifications:

      intended use : MTB
      Material: aluminum 7075-T6
      Technology: Narrow Wide, Melon (oval)
      bolt circle diameter : 96 mm (asymmetrical)
      Mounting: 4-arm Spider,
      Number of teeth: 30, 32, 34, 36 or 38 teeth
      Compatibility cranks : Shimano XT M8000 (single), Shimano SLX M7000 (single) and Shimano MT700 cranks (single)
      Compatibility chain: 9x, 10-speed , 11-speed
      Mounting: Outside
      chain line Standard: 49mm (32T), 50.9mm (34T), 52.2mm (36T) or 53.2mm (38T)
      chain line Boost: 52mm (32T), 53.9mm (34T), 55.2mm (36T), or 56.2mm (38T)
      Offset: Standard
      Adjustment possibilities: none,
      Range (ovalization): 12%,
      Timing: 108 ° to TDC (OT)
      Color: black, red, blue, green, violet, orange

      Weights: 45g (30T), 49g (32T), 58g (34T), 67g (36T), 79g (38T) Manufacturer Specifications


      Scope of delivery: 1x Garbaruk Melon Kettenblatt


      Product weight:45g
