GARBARUK Chainring Melon Direct Mount oval | 1-speed narrow-wide for Tune Smart Foot Crank

Item number:
30529
Product weight:
55 g
Manufacturers:

from 69,50 €
MSRP: 75,00 €
You save 7,33%, that is 5,50 €

including 19% VAT. excl. Shipping costs / shipping time info

ca. 2 - 4 weeks
Version
Color

There are variations of this item. Please select the variation you wish.


Product details

Description

GARBARUK Chainring Melon Direct Mount oval | 1-way narrow-wide Tune Smart Foot crank

Garbaruk is a company from Ukraine, which has its roots in motorsport.
The design and manufacture of engine and suspension tuning parts were a staple of Garbaruk. The experience gained and knowledge has allowed the cycling enthusiasts Garbaruk Gebrüder today in the production of bicycle parts incorporated. All steps from design, production to surface finishing are under one roof.
7075-T6 aluminum from Germany is the raw material from which the Garbaruk chainrings are elaborately CNC-milled. The chainrings have some features that are different from competitors.

narrow-wide teeth
In order to hold the chain securely in position even without a chain guide, the teeth have a special profile of narrow and wide teeth alternating. To ensure that this is even under very rough and rough conditions, the teeth of the Garbaruk chainrings are made about 40% longer than conventional teeth. Furthermore, the teeth are shaped so that even in muddy conditions, the chainring works very well. Dirt and mud are effectively removed when overflowing the chain.

We recommend using a derailleur with increased cage tension (SRAM Type 2-3, Shimano Shadow +), which reliably holds the chain in place and prevents it from jumping off.

Direct mount assembly
The chainring is mounted directly on the crank arm and replaces the possible previous spider.
The result is a tidy look that saves weight while providing excellent stiffness.

VCLT (Variable ChainLine Technology)
Garbaruk works on all Direct Mount chainrings with a changing chain line , which depends on the number of teeth. For other manufacturers, a fixed chain line common, but must be chosen so that even larger chainrings do not touch the chainstay.
The smaller the Garbaruk chainring, the closer it is possible to place it on the chainstay.
The chain line is thus even more optimal, since the chainring is aligned almost centered to the cassette.

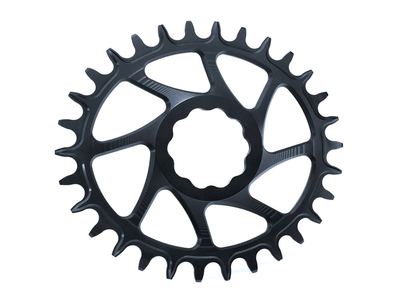

Melon - oval shape
Ovalization of the chainring enhances performance through powertrain variation and drag optimization. When pedaling with the legs, the natural strengths and weaknesses are reconciled. Thus, a better use of the stronger muscle groups is achieved and in the weaker muscles a balance in the working path (lower stroke) created.


Technical specifications:

intended use : MTB
Material: 7075-T6 aluminum
Technology: Narrow Wide, VCLT, Melon
bolt circle diameter : -
Spider: -
Number of teeth: 28, 30, 32, 34, 36, 38, 40 teeth
Attachment: Direct Mount
Compatibility: Tune Smart Foot Crank
Compatibility Chain: 9x, 10-speed , 11-speed or 12-speed (SRAM Eagle)
Assembly: -
chain line : ns
Offset: not specified
Adjustment options: none
Range (ovalization): 12%,
Timing (force introduction): 108 ° after TDC (OT)
Color: black, red, blue, green, purple, orange

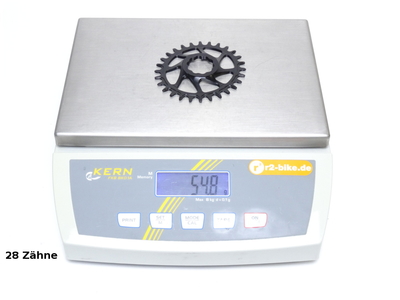

Weight: 54.8 g (28 teeth), 69.1 g (34 teeth)


Scope of supply : 1x GARBARUK chainring Melon Direct Mount oval | 1-way narrow-wide Tune Smart Foot crank
