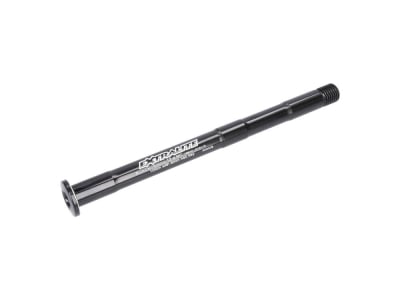

EXTRALITE thru axle Black Lock 12.4RC | 12x142 mm for SCOTT Rennrad / Road from 2020
After the super light BlackLock QR12 axle , Extralite is expanding its portfolio with a racing bike compatible series. A thru axle with a diameter of 12 mm, which is used in racing bike rear structures with an installation width of 142 mm. The axle is CNC-milled from one piece of 7075 aluminum, butted several times and then anodized in black. In order to reduce the weight as much as possible, the tool holder moves to the right-hand side. Thanks to the threaded part, the already reinforced side is ideally suited for this.
Technical specifications:
Material: aluminum 7075 T6
Hub standard: 12x142 mm
Compatibility: Scott road bike frame from model year 2020
Axle length: 168 mm (without head)
Axle diameter: 12 mm
Thread pitch: M12x1.5
Thread length: 13 mm
Contact surface, not thread side: flat
Tool holder: 6 mm hexagon socket
max.permissible torque: 8 Nm
Color: Black
Weight according to the manufacturer: 29g
Weight weighed: 28g
Scope of delivery: 1x EXTRALITE thru-axle Black Lock 12.4RC | 12x142 mm for SCOTT Rennrad / Road from 2020
