EXTRALITE Rear Hub HyperBoost3 R | Enduro Bearings Stainless Steel SRAM XD 36 Teeth 12x148 mm BOOST

Item number:
51068
Product weight:
148,5 g
Manufacturers:

469,00 €
MSRP: 469,00 €

including 19% VAT. , excl. Shipping costs / shipping time info

Availability:
no delivery date
Version

There are variations of this item. Please select the variation you wish.


Product details

Description

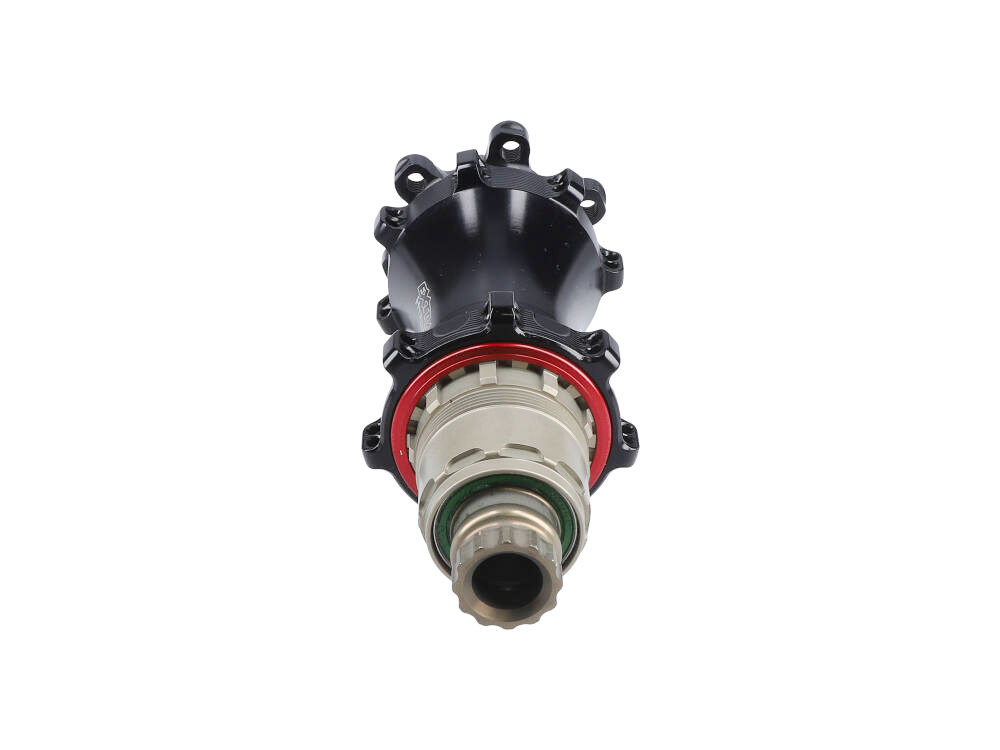

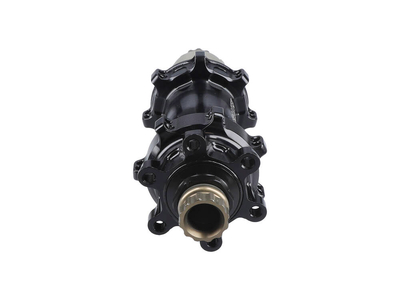

EXTRALITE rear hub HyperBoost3 R | Enduro Bearings stainless steel bearing SRAM XD 36 teeth 12x148 mm BOOST

Stable, precise and incredibly light. With the HyperBoost3 R rear hub, the Italian lightweight construction specialists are raising the bar a little higher.

With a weight of 148 grams, the HyperBoost3 R is one of the lightest hubs that money can buy at the moment. Elaborate computer simulations, countless prototypes and a long test phase under the toughest conditions guarantee you a long service life.

In the current version, the Italians have turned the weight screw again and defined the new standard for hubs with 148g. Despite its low weight, the hub is approved for good driving style up to enduro use. The freewheel mechanism has also been optimized. The toothed washer in the hub body has lost 20% of its weight and sits in a newly developed toothing. In addition to an improved engagement speed when starting, this also reduces the resistance when rolling. The service life and wear and tear have also been optimized by these changes compared to the predecessor. Those who prefer the harder pace can install a larger 6903 2RS bearing on the disc side. The weight of the hub then increases by 8 grams, but the hub becomes significantly more durable and more resilient.

As usual from Extralite, the hub is perfectly processed. Minimal tolerances and high-quality materials leave no doubt as to the quality and stability of this work of art. The black hard anodized hub body rotates on two 6803 2RS deep groove ball bearings around the multi-butted axle . An O-ring on each side provides additional protection against water and dirt. To ensure a long service life for your bearings, you can use the Micro-Turner to adjust the bearing play perfectly at any time.
In addition to the organic oversized shape, the modern hub concept also includes the spoke flanges, which are intended for straight-pull spokes. Due to the straight spokes there is a more straightforward flow of force and, due to the elimination of the curved spoke head, there is one less potential weak point in the wheel.

36 teeth
The spur gear teeth have 36 teeth. This results in a maximum idle travel of 10 ° when starting.

Stainless steel bearings
Best corrosion resistance and the ideal choice if the bike is often used in adverse conditions.

We would be happy to make you an offer for a complete custom wheelset with rims and spokes of your choice. Please send us an email to [email protected] !


Technical specifications:

intended use : Cross Country, Marathon, Enduro
Material: aluminum 7075TXX, steel
axle type : 12x148 mm plug axis (BOOST / outboard)
Number of holes: 24 or 28
Brake disc mount: 6-hole (IS2000)
bearing freewheel: 2x 6803 2RS deep groove ball bearings, Enduro Stainless Bearings 440C
bearing : 1x 6803 2RS (Disc Side), 1x 6903 2RS deep groove ball bearing (center), Enduro Stainless Bearings 440C
Seal: labyrinth rubber seals, O-ring seal
Spoke type: straight pull (straight)
Features: Storage option 6903 2RS "Heavy Duty" on the disc side
Spoke tension max .: 1275N (Disc Side), 1275N (Drive Side)
maximum system weight: n / a
Color: black with laser logo

Weight according to the manufacturer: 148g
Weight weighed: 148.5g


Scope of delivery: 1x EXTRALITE rear hub HyperBoost3 R | Enduro Bearings stainless steel bearing SRAM XD 36 teeth 12x148 mm BOOST
