Description

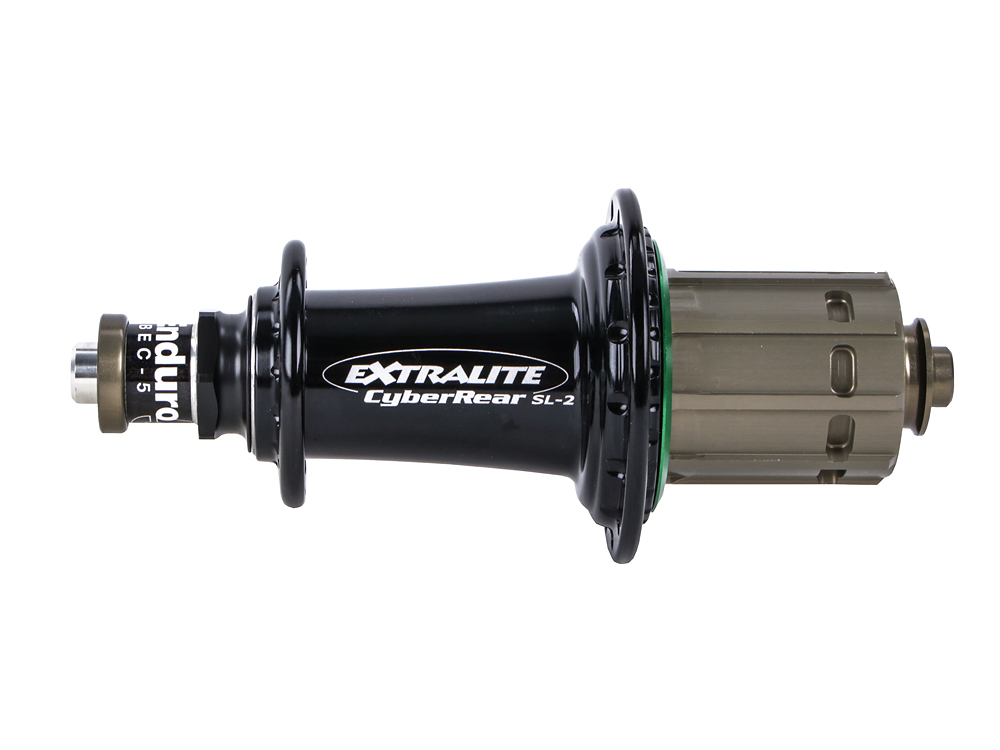

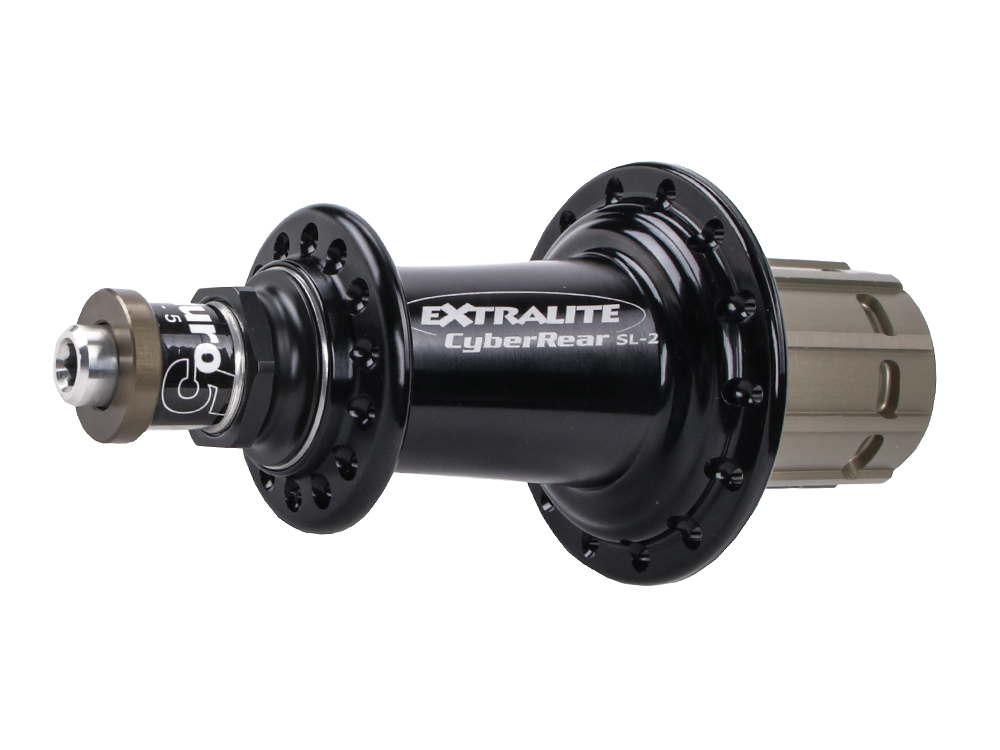

EXTRALITE hub rear CyberRear SL-2 Road
The Extralite CyberRear SL-2 combines an ultra-light hub with high reliability. In the elaborately CNC-milled aluminum hub body rotate 4 double sealed deep groove ball bearings on a multiple butted aluminum axle with 17 mm diameter. The freewheel body works with two titanium pawls, which simultaneously engage in a 32-fold titanium gearing. On the non-drive side, there is always the possibility to adjust the axial play of the hub via the Microtuner. The result is a 134g lightweight hub that packs a punch!
Technical specifications:
intended use: road bike
Material: Aluminum 7075TX, Grade5 titanium
Installation width: 130 mm
Axle standard: 5x130 mm quick release (Road)
Number of holes: 20, 24 or 28 holes
Brake disc mount: none
Freewheel compatibility: 11-speed Shimano Road, 12-speed SRAM XDR (Road) or 11-, 12-speed Campagnolo
Freewheel type: 2 pawls, 32 detents
Bearing: 4x ABEC5 bearings (1x6903-2RS, 3x6803-2RS)
Seal: Labyrinth rubber seals
Spoke tension: max. 882N (non Drive Side) 1560N (Drive Side)
Color: black, with laser logos
Weight according to manufacturer: 134g
Weight weighed: 135g
Scope of delivery: 1x EXTRALITE hub rear CyberRear SL-2 Road
Manuals / Downloads
Manual
