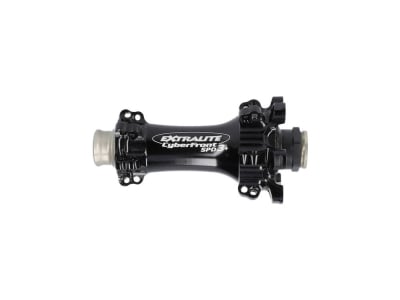

EXTRALITE Front Hub CyberFront SPD 3+ Road 6-Hole | 12x100 mm Thru Axle

Description

EXTRALITE Front Hub CyberFront SPD 3+ Road 6-Hole | 12x100 mm Thru Axle

It has long been known that the Italians around Extralite create small CNC works of art. Their extravagant design stands out from the crowd and is an eye-catcher on any bike.
With the next evolutionary stage of the Cyberhubs, they have once again outdone themselves. The one-piece hub body is CNC-milled from high-strength 7075TX aluminum at great expense. This rotates around a lightweight aluminum axle, tapered to 14 mm in the middle, with double-sealed deep groove ball bearings. The axial play can also be finely adjusted in future using the micro-tuner.
The spoke mounts have been significantly modified. These are now closer to the hub body, but still use the straight-pull version to minimize susceptibility to punctures. The holes have been enlarged and rounded to a diameter of 2.8 mm and can accommodate not only conventional stainless steel spokes but also carbon or even textile fiber versions. This means you are already equipped for the future. In addition, the coordinated geometry of the hub flange ensures an optimum spoke angle and can also withstand high spoke tensions. This guarantees you a very stiff and durable wheel.
All these features, together with the excellent workmanship, result in a 61 gram lightweight hub that will amaze the technology-loving road cyclist.

We will be happy to provide you with a quote for a complete custom wheelset with hubs and spokes of your choice. Please send us an e-mail to [email protected].

Technical data:

Application: Road, Gravel
Material: Aluminum 7075TX
Axle standard: 12x100 mm thru axle
Number of holes: 24
Brake rotor mount: 6-hole (IS-2000)
Bearings: 2x deep groove ball bearings, ABEC5, 2RS sealed
Spoke type: Straightpull spokes (straight)
max. permissible spoke tension: 1176 Nm
maximum system weight: n/a
Finish: glossy
Color: black with white laser logo

Weight according to manufacturer: 63g
Weight self-weighed: 64g

Scope of delivery: 1x EXTRALITE Front Hub CyberFront SPD 3+ Road 6-Hole | 12x100 mm Thru Axle

more  always opened

Manufacturer information

Studio Riva SRL

Strada dei Boschi 8

26813 Graffignana

Italien

https://www.extralite.com/

SKU:	68564
Item weight:	64g
