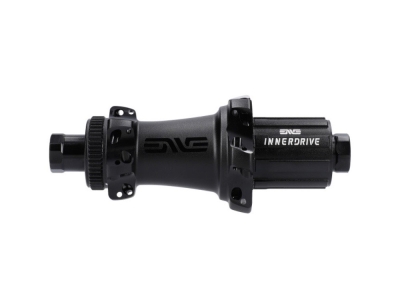

ENVE Rear Hub Innerdrive Straightpull Road Center Lock | 12x142 mm Thru Axle | Shimano HG
ENVE products have experienced a rapid rise in the world of cycling. They have even been tested in major races such as the Tour de France or the Vuelta in Spain. The carbon specialists from the USA develop only the uncompromisingly best components for professionals and ambitious amateur cyclists. With the Innerdrive hubs, ENVE sets a new benchmark for bicycle drive mechanisms. Durability, low maintenance and maximum performance were the main focus during development. The UAE Team Emirates has already put the hubs to the test under real-life conditions on tens of thousands of kilometers of the World Tour.
The change from J-bend spokes to straight-pull spokes immediately catches the eye in the newly designed hub shell. In contrast to conventional hubs, where the spokes are bent at a 90-degree angle, the spokes on straight-pull hubs run straight. As the spokes are not bent, they are generally stiffer, which increases the stiffness of the entire wheel and improves power transmission. Straightpull hubs are also significantly lighter, as they require less material to offer the same stability. The hub shell creates space between the spokes and ensures that there is no more spoke creaking. To simplify wheel construction and maintenance, the same spoke length is used on both the drive and non-drive side.
However, the real magic happens on the inside. ENVE relies on the toothed disk system for the freewheel mechanism. Instead of pawls that engage with a sprocket, the system consists of two toothed disks that slide over each other. When pedaling, the teeth of the two discs engage with each other and transfer the power to the rear wheel. An oversized ratchet diameter of 42 millimetres promises less stress on the individual teeth and improved torque transmission to the axle.
Technical data:
Area of application: Road, Gravel
Hub material: aluminum
Freehub body material: aluminum
Sprocket material: steel
Installation width: 142 mm
Axle standard: 12 x 142 mm thru axle
Number of holes: 24
Brake rotor mount: Center Lock
Freehub compatibility: Shimano HG
Freehub type: ratchet system, 60 teeth, maximum 6° free travel
Bearing: industrial bearing
Spoke type: Straightpull
Seal: n/a
Spoke tension: n/a
Maximum system weight: n/a
Finish: matt
Color: black
Weight according to manufacturer: 217g
Weight self-weighed: 227g
Scope of delivery: 1x Enve rear hub Innerdrive Straightpull Road Center Lock | 12x142 mm thru axle | Shimano HG
