EASTON stem EA50 31.8 mm | +/- 17 °
With the EA50, Easton offers a stem with high quality at a low price. The proven 4-screw Top-Lock front plate ensures an extremely rigid cockpit and a transmission of high clamping forces with low torque. In addition, the one-piece clamping plate enables easy assembly. For an elegant and aerodynamically favorable integration of Garmin bike computers, the stem is compatible with the ICM holder from Easton integrated in the front panel. The EA50 is available in lengths of 80, 90 and 100 millimeters.

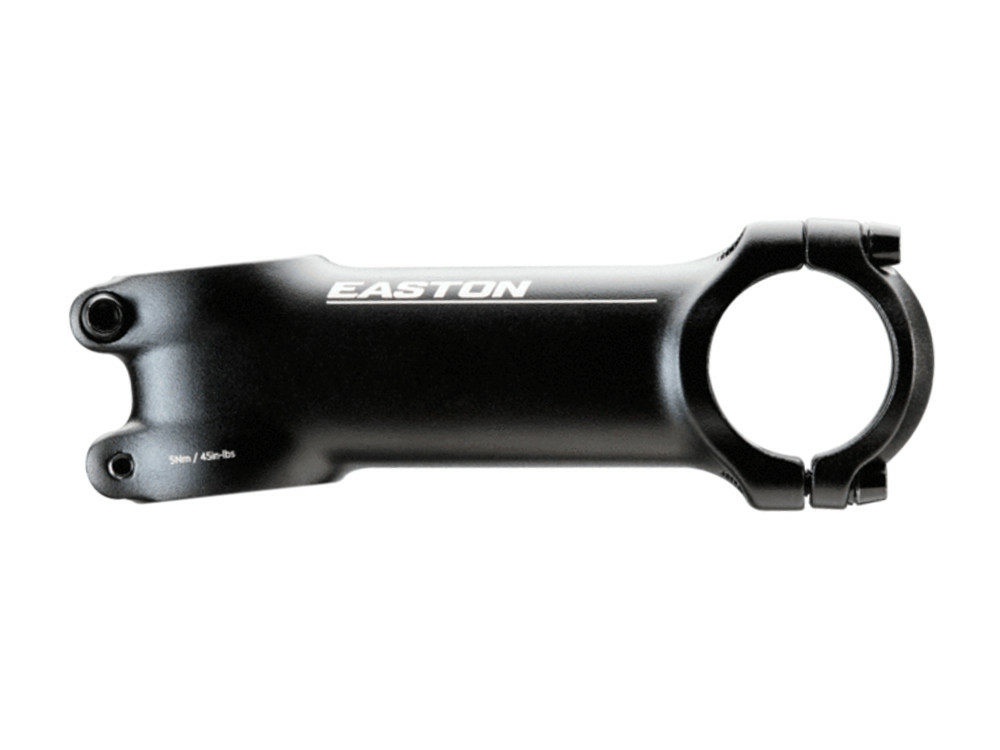

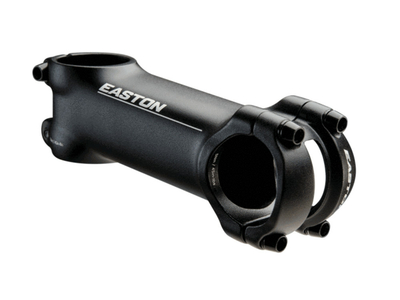

NOTE: The images show the stem with a + -7 ° tilt angle.
intended use : racing bike, gravel, cyclocross, MTB
Material stem: aluminum
Material screws: stainless steel
Handlebar clamp Ø: 31.8 mm
Steerer diameter: 1 1/8 "
Lengths: 80 mm, 90 mm or 100 mm
Angle: +/- 17 ° (flip flop)
Clamping height of the steerer tube: 39 mm
Clamp width handlebar: 40 mm
Tool holder: hexagon socket
Max. Torque: 5 Nm
Weight restriction: n / a
Weight according to the manufacturer: 140g (100 mm)
Weight weighed: 133g (100mm)
Scope of delivery: 1x EASTON EA50 stem 31.8 mm | +/- 17 °
