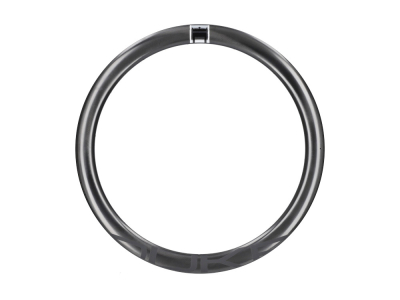

DUKE rim 28" Baccara Ultra 48 SLR2 Disc UD-Carbon symmetrical
High speeds on slightly hilly routes are exactly what this medium-height rim is made for. Its impressive aerodynamic properties, coupled with a weight of less than 400g, are unrivaled. Nevertheless, safety has not been spared, as it is approved for a system weight of 95 kg.
How did the French achieve this? They took a closer look at the individual elements of the rim and looked for ways to optimize them. In particular, a new resin was used. This not only made it possible to reduce weight, but also to increase impact resistance. Thanks to the SLS2 production process, no reworking or painting is necessary after production. The use of highly modular carbon fibres also improves the inherent damping, which in turn has a positive effect on riding comfort. The modified design enables unrestricted tubeless use and brings measurable aerodynamic benefits.
In the Ultra version, material has also been saved in non-critical areas in order to reduce weight without compromising functionality.
2-year warranty and lifetime crash replacement on UD carbon rims
Duke selects the materials used very carefully in order to be able to offer you the best possible product. Therefore, the quality standards for all products, subcontractors and partners are very strict. Duke guarantees that the rims offered have no hidden defects for a period of two years. However, improper installation or use of the products will invalidate the warranty.
In the event of accidents or heavy falls, violent impacts can damage the rim and make it impossible to use. Duke therefore offers a lifetime crash replacement for its UD carbon rims. In exchange, you will receive a 50% discount on the rim you have purchased.
We will be happy to provide you with a quote for a complete custom wheelset with hubs and spokes of your choice. Please send us an e-mail to [email protected]!
Technical data:
Application: Road bike, Gravel
Material: Carbon
Rim type: clincher (clincher and folding tires)
Brake type: only for disc brakes
ETRTO: 622x21
ERD: 547 mm
Inner width: 21.0 mm
Outer width: 27.6 mm
Rim height: 48 mm
Offset: no
Number of holes: 24 or 28 hole
tubeless compatible: yes
ASTM classification: n/a
recommended tire width: 25 - 53 mm
maximum tire pressure: 7.5 bar (28 mm)
maximum system weight: 95 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1100 - 1200 N
Features: -
valve hole bore: 6 mm (SV)
Finish: UD carbon, satin gloss
Color: black
Weight according to manufacturer: 395g
Weight as weighed: 401g
Scope of delivery: 1x DUKE rim 28" Baccara Ultra 48 SLR2 Disc UD-Carbon symmetrical
MPN:
B48Ultra-SLR2-symm-28
