DT SWISS Upgrade Kit DEG DF Anti Pedal Kickback System E-MTB | with Tool

Description

DT SWISS Upgrade Kit DEG DF Anti Pedal Kickback System E-MTB | with tool

It's finally here, your long-awaited fully. Unfortunately, after the first ride you feel a little disillusioned. Somehow you are annoyed by the constantly rough handling, especially when the suspension compresses heavily. This is the result of the dreaded pedal kickback. This phenomenon occurs when the upper chain length of many full-suspension mountain bikes wants to become longer when the suspension is compressed. However, the cassette cannot rotate forwards to allow this to happen, thus inhibiting the function of the rear suspension and causing the cranks and pedals to bounce. Various ideas have tried to reduce this effect, but were not really functional or too heavy. DT Swiss has now come up with a technology that works directly in the hub, does not change the weight and can also be individually adjusted.

This system, called DEG DF Anti Pedal Kickback, can be retrofitted to all DEG72 or DEG90 rear hubs that are intended for use on E-MTBs. The threaded ring and the inner, free-moving toothed pulley are designed in such a way that the cassette can rotate forward by 10° when the rear triangle is lifted sharply. This leads to a virtual elongation of the chain and significantly reduces the impact on the pedals. All this happens without the rider noticing anything while riding or even having to readjust. At 0°, the hub reacts as usual and a stronger kickback is to be expected.
The system can be easily installed by any skilled person and the desired angle can be individually adjusted without tools.

Note
We recommend using the supplied DT Swiss special grease to lubricate the pulleys.

Technical data:

Material: steel
Compatible hubs: DT Swiss rear hub with DEG72 or DEG90 pulley freehub for E-bike installation
Pressure angle: 0° or 10° selectable
Toothing: 60 teeth
Color: silver

Weight according to manufacturer: n.a.
Weight self-weighed: -

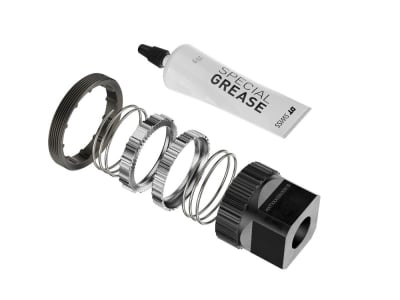

Scope of delivery:

1x DEG DF threaded ring
1x DEG DF inner toothed lock washer
1x DEG outer toothed lock washer
2x DEG springs
1x DT Swiss Special Grease 20 g
1x tool for screwing the threaded ring into the hub shell

Conversion instructions

Setup instructions

GTIN:

7613052511696
