Description
DT SWISS Steckachse VR RWS Plug In Road with lever 12x100 mm E-Thru
The patented RWS wheel mounting system from DT Swiss is stiff, safe and easy to use. The plug-in version offers all the advantages of a tool-free mounting of the plug-in axle, if you want. If you prefer the clean look of a screw axis, simply pull the lifting unit and store it in your backpack. Or leave them at home. On the axle is a 6 mm hexagon socket which can be operated with any standard tool. On the lifting unit is also a 6 mm hexagon which can of course also be used as Minitool on the road.
Clean and smart: The RWS Plug In.
Because there are no plastic parts in the flow of the RWS, the clamping force is independent of the temperature and thus the RWS is 100% disc-brake-proof!
Due to the direct transmission of the lever force to the thread, the RWS can achieve a clamping force of up to 50% higher than with conventional quick-release clamps. This is not only safer, but also increases stiffness, which is particularly noticeable with disc brakes.
Technical specifications:
Material: aluminum
Hub standard: QR12 (12 mm quick-release axle with 100 mm installation width)
Compatibility: Road / Cyclocross / Gravel forks
Axle length: 121 mm
Wheel diameter: 12 mm
Thread length: 14 mm
Threaded pitch: M12x1.5
Contact surface, non-threaded: flat
Tool holder: 6 mm
Color: Black

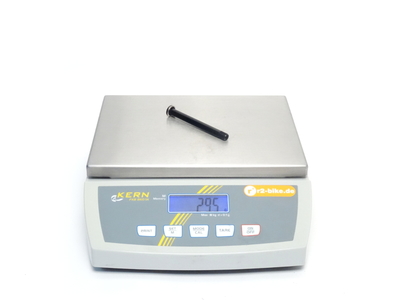

Weight: 29.5g (without lever), 57g (with lever)
Scope of delivery: 1x DT Swiss RWS plug-in axle with lever
