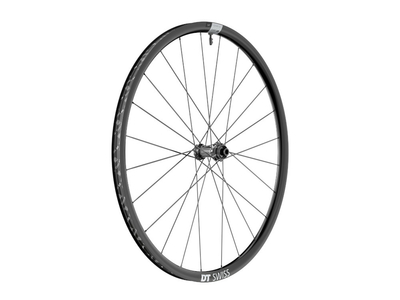

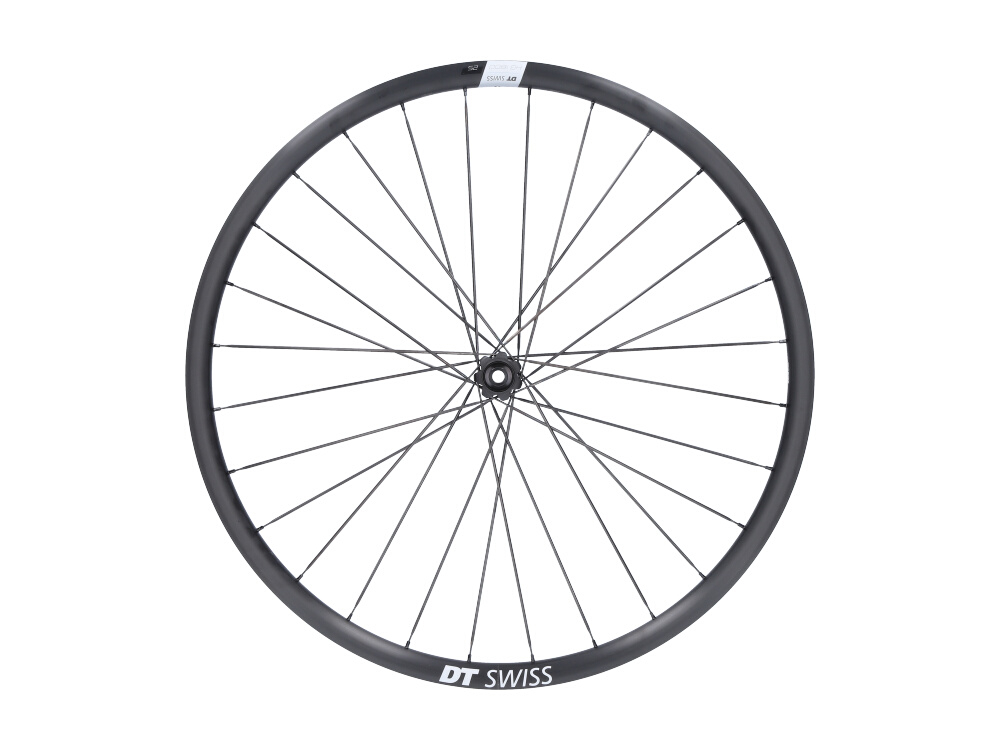

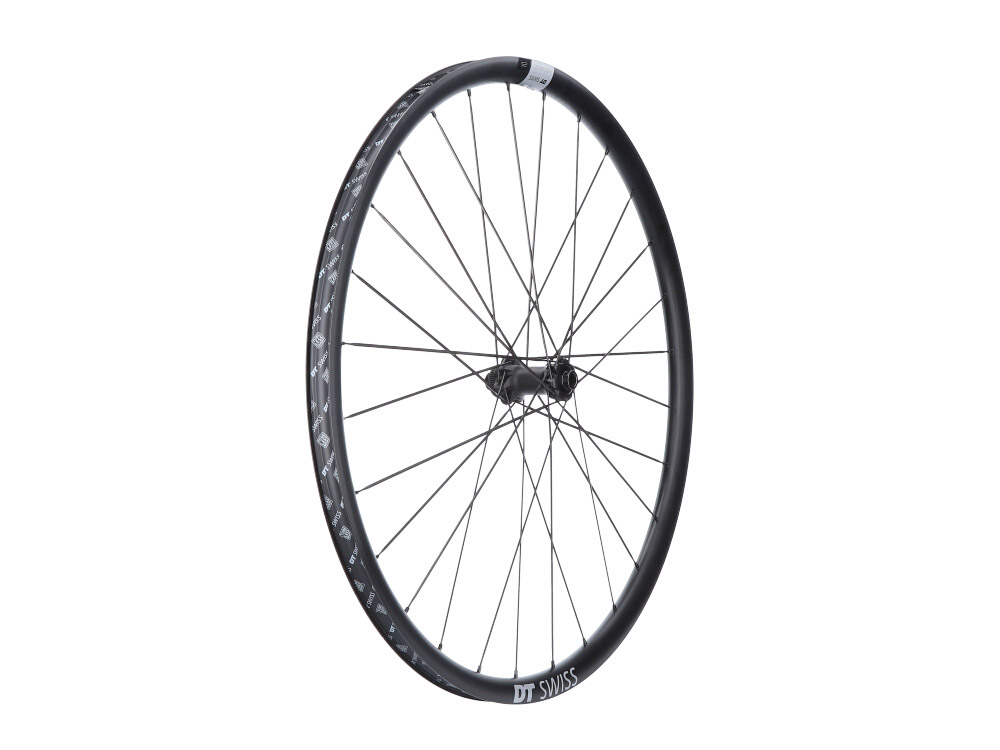

DT SWISS front wheel 27.5" HG 1800 Spline Center Lock | black
Support from electric motors has also found its way into the gravel sector. The HG 1800 Spline front wheel is designed precisely for the higher loads.

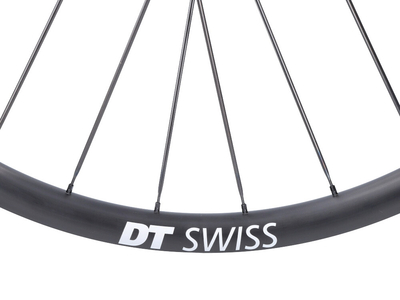

Even the stable rim inspires a lot of confidence. Excellent workmanship, it can accommodate tires up to a width of 69 mm thanks to its enormous inner width of 24 mm. This generates more comfort and better grip. Of course, it is tubeless-capable, which significantly reduces the susceptibility to punctures. In addition, the 25 mm rim height ensures good aerodynamic values on faster sections.
In the center is the reliable DT Swiss 370 hybrid hub with a modern spline design. Their high rigidity leads to direct and precise steering behavior. The smooth-running and perfectly sealed bearings guarantee a long service life and low maintenance.
The connection between the hub and the rim is made by the DT Swiss Aero Comp Straightpull Hybrid spokes. These have been strengthened, but still offer little resistance to the wind. The Pro Lock® Squorx Pro Head® nipples also contribute to the high stability. They contain a two-component adhesive that prevents unintentional loosening after centering.
All these optimizations allow DT Swiss to increase the maximum system weight to 140 kg. This means that even cyclists can pack a little more on a long tour.
With the HG 1800 you get a robust front wheel, which, in addition to a discreet look, also has an excellent price-performance ratio.
intended use : Gravel, E-Gravel
Wheel size: 27.5" (584-24 mm)
Rim type: clincher for folding and clincher tires
Brake type: only for disc brake
Brake disc mount: Center Lock
Inner width: 24 mm
Outer width: 28mm
Rim Height: 25mm
Number of holes: 28 holes
axle type : 12x100 mm thru axle
bearing : 2x industrial ball bearings
Spokes: DT Swiss Aero Comp Hybrid straight pull
Spoke count: 28
Lacing pattern: 3-crossed
tubeless capable: yes
recommended tire width: 30 - 69 mm
maximum air pressure: 7.2 bar (30 mm), 2.5 bar (69 mm)
Maximum system weight: 140 kg (driver, bike, clothing and possibly luggage)
Color rim: black matt
Color hub: black matt with gray decals
Weight according to the manufacturer: 895g
Weight weighed: 920g
Scope of delivery:
1x DT SWISS front wheel 27.5" HG 1800 Spline Center Lock | black
1x Tubeless Ready rim tape (already mounted)
1x tubeless valve 32 mm
