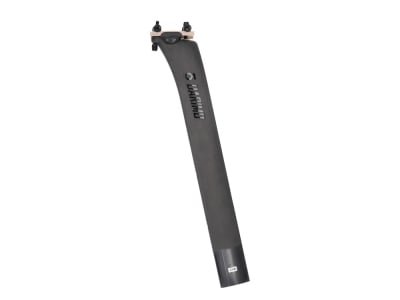

DARIMO Seatpost for Pinarello Dogma F | UD matt | black | 15 mm offset | Aero

Description
Variations

DARIMO seatpost for Pinarello Dogma F | UD matt | black | 15 mm offset | Aero

Are you looking for a weight-optimized seatpost for your Pinarello Dogma F? The Spanish lightweight construction specialists from Darimo have the right offer for you. All parts of the handmade seatposts are optimized to achieve a sensationally low weight of 110g at 350 mm length. The tube itself consists of asymmetrically arranged layers (bidirectional and unidirectional) of carbon, which are laminated by hand. The layer structure is always adapted to the loads occurring on the seatpost and varies in the arrangement and number of layers.

The clamp head is suitable for all standard saddle racks. From 7 mm round to 7x9 mm oval, everything is securely clamped.

The Darimo T1 Aero seatpost has passed the ISO 4210 standard test. The rider's weight limit including clothing and luggage is 90 kg.

Technical data:

Area of application: Road bike
Material: Carbon, titanium, aluminum
Compatibility Frame: Pinarello Dogma F
Saddle frame compatibility: Round (7x7 mm) or oval (7x9 mm)
Length (A): 250 mm, 300 mm, 350 mm, 400 mm
Minimum insertion depth (B): 75 mm, 80 mm, 85 mm, 90 mm
min. possible usable height (C): 100 mm, 145 mm, 190 mm, 235 mm
max. possible usable height (D): 175 mm, 220 mm, 265 mm, 310 mm
Offset: 15 mm
Weight limit: max. 90 kg
Finish: UD matt | Decals black (are interchangeable and optionally available)

Weight according to manufacturer: 110g (350 mm)
Weight as weighed: 110g (350 mm)

The weights may deviate +/-3% from the manufacturer's specification.

Scope of delivery:

1x DARIMO seatpost for Pinarello Dogma F | UD matt | black | 15 mm offset | Aero
1x mounting gel Fibergrip for carbon

Note: The instructions for the product must be observed. Torques must be strictly adhered to. The clamping range must be observed and the seatpost must NOT be shortened. Use in mounting stands (and similar clamps) is expressly not recommended.
