CARBON-TI Thru Axle X-Lock EVO 12x1,75 X-Maxle | 174 mm

CARBON-TI thru-axle X-Lock EVO 12x1.75 X-Maxle | 174 mm

CARBON-TIs super-light X-Lock EVO thru axles are elaborately manufactured from one piece of 7075 aluminum. Thanks to the optimized head and multiple butting, they are extremely light and have excellent rigidity values. Operation is child's play with a 6 mm Allen key. You can choose between different colors so that it fits your bike optically.

Made in Italy.

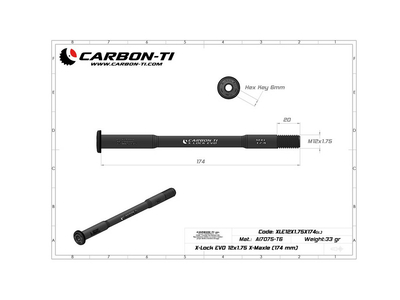

Technical specifications:

Material: aluminum 7075 T6
Hub standard: 12x142 mm and 12x148 mm Boost
Compatibility: BMC FourStroke FS02 (2014), Ibis Mojo SL-R (2013), Ibis Mojo HDR (2014), Ibis Ripley (2013), KTM Myroon Prestige, Prime, Master, Elite 29 (2015), KTM Myroon Prestige, Prime , Master, Elite 27 (2015), KTM Scarp Prestige, Prime Master, Elite 29 (2015), KTM Scarp Prestige, Prime Master, Elite 27 (2015), Niner RIP9 (2013-2015), Niner SIR9 (2015-2016) , Trek Procaliber 9.9 SL, 9.8 SL, 9.7 SL (2016), Trek Superfly 9.9 SL (2013-2015), Trek Superfly 9.8 (2013-2015), Trek Superfly 9.7 (2015), Trek Superfly 9.6 (2014-2015) = > after "closed convert" change, Wilier 101XN (2014)
Axle length: 174 mm
Axle diameter: 12 mm
Thread pitch: M12x1.75
Thread length: 20 mm
Contact surface, not thread side: flat
Tool holder: 6 mm hexagon socket
max.permissible torque: 10 Nm
Color: red, gold, blue, silver, black, matt black, green and acid green

Weight according to the manufacturer: 33.5g
Weight weighed: 33.1g


Scope of delivery: 1x CARBON-TI thru-axle X-Lock EVO 12x1.75 X-Maxle | 174 mm
