CARBON-TI thru-axle X-Lock EVO 12x1.5 XE-Thru | 172 mm

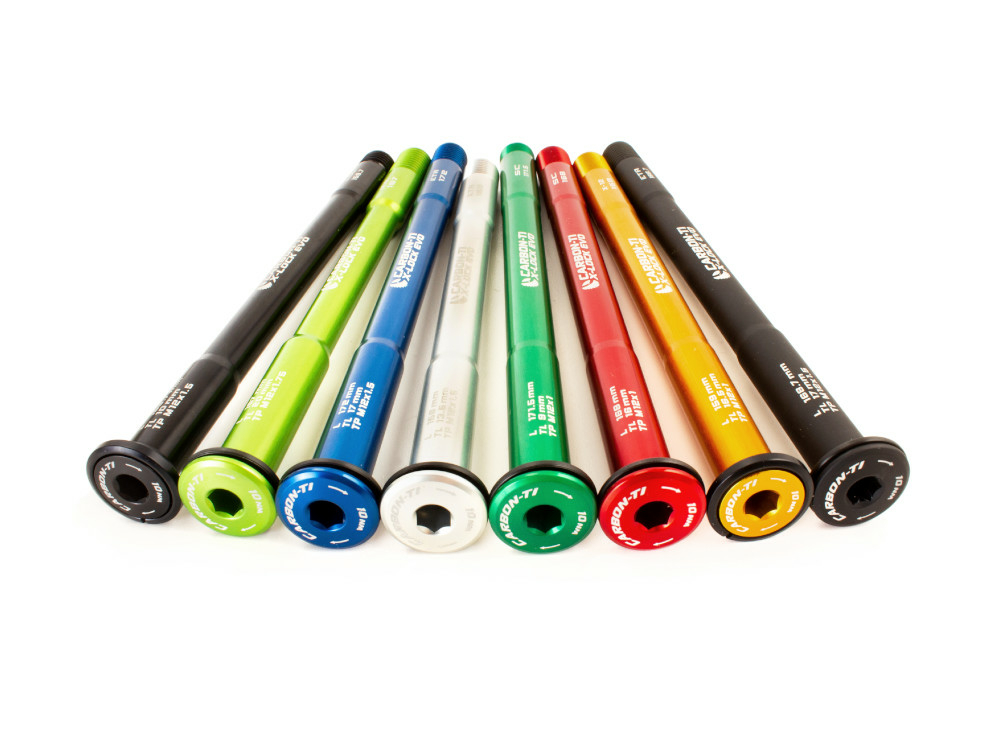

CARBON-TIs super-light X-Lock EVO thru axles are elaborately manufactured from one piece of 7075 aluminum. Thanks to the optimized head and multiple butting, they are extremely light and have excellent rigidity values. Operation is child's play with a 6 mm Allen key. You can choose between different colors so that it fits your bike optically.
Made in Italy.
Technical specifications:
Material: aluminum 7075 T6
Hub standard: 12x142 mm
Compatibility: BMC FourStroke FS01 (2013-2015), BMC FourStroke FS02 (2013), Focus Super Bud 29r (2014), Giant Anthem Advanced 27.5 (2015), Giant XtC Advanced SL 27.5 (2014-2015), GT Zaskar 100 (2013 ), Haibike Greed (2012), Kona King Kahuna 29er (2003), Lapierre Zesty (2014), Lapierre Spicy (2014), Titici Explosion (2013-2015), Titici Flexy (2014-2015), Rocky Mountain Element 950 RSL 29 "(2014), Rocky Mountain Vertex Carbon 29" (2012), Yeti SB6 Carbon (2015-2016), Yeti SB4.5C Boost 148 (2016), Yeti SB5.5C Boost 148 (2016)
Axle length: 172 mm
Axle diameter: 12 mm
Thread pitch: M12x1.5
Thread length: 17 mm
Contact surface, not thread side: flat
Tool holder: 6 mm hexagon socket
max.permissible torque: 10 Nm
Color: red, gold, blue, silver, black, matt black, green and acid green
Weight according to the manufacturer: 32g
Weight weighed: 32.1g
Scope of delivery: 1x CARBON-TI thru-axle X-Lock EVO 12x1.5 XE-Thru | 172 mm
