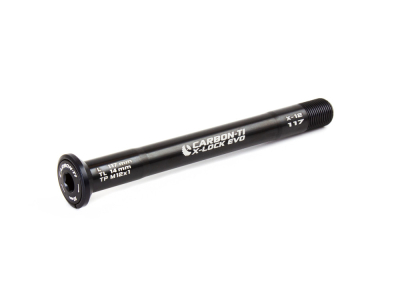

CARBON-TI Thru Axle X-Lock EVO 12x1,0 X-12 | 159 mm

CARBON-TI thru-axle X-Lock EVO 12x1.0 X-12 | 159 mm

CARBON-TIs super-light X-Lock EVO thru axles are elaborately manufactured from one piece of 7075 aluminum. Thanks to the optimized head and multiple butting, they are extremely light and have excellent rigidity values. Operation is child's play with a 6 mm Allen key. You can choose between different colors so that it fits your bike optically.

Made in Italy.


Technical specifications:

Material: aluminum 7075 T6
Hub standard: 12x142 mm
Compatibility: Cannondale Scalpel 29er (2013-2015), Canyon Lux CF (2014-2015), Canyon Gran Canyon CF (2014-2015), Specialized S-Works Aethos (2021), Specialized S-Works Tarmac SL7, SL6 Disc (2019 -2021), Specialized S-Works Crux (2019-2021), Specialized S-Works Venge Disc (2019-2020), Specialized Tarmac SL7, SL6 (Pro, Expert, Comp) Disc (2019-2021), Specialized Crux (2019 -2021), Specialized Venge (Pro, Expert, Comp) Disc (2019-2020), Specialized S-Works Epic (2011-2017), Specialized S-Works Stumpjumper HT (2015-2016)
Axle length: 159 mm
Axle diameter: 12 mm
Thread pitch: M12x1.0
Thread length: 16.5 mm
Contact surface, not thread side: conical
Tool holder: 6 mm hexagon socket
max.permissible torque: 10 Nm
Color: red, gold, blue, silver, black, matt black, green and acid green

Weight according to the manufacturer: 30g
Weight weighed by yourself:


Scope of delivery: 1x CARBON-TI thru-axle X-Lock EVO 12x1.0 X-12 | 159 mm
