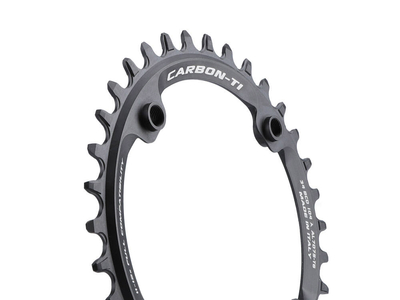

CARBON-TI chainring X-Ring EVO 1-fold LK 104 mm | 38 teeth
The X-Ring EVO chainring from Carbon-Ti is the matching 1x 12-speed chainring from the Italians for the SRAM QUARQ XX1 Eagle Spider, and it is compatible with all common cranks that have a 104 millimeter 4-arm bolt circle diameter . The resistant AL7075-T6 aluminum alloy ensures high rigidity and low wear. The special tooth design allows the chain to run quietly and with little resistance over the chainring.
narrow-wide
In order to keep the chain securely in position even without a chain guide, the teeth have a special profile of narrow and wide teeth alternating. Furthermore, the teeth are shaped so that the chainring works very well even in muddy conditions. Dirt and mud are effectively removed when the chain overflows.
We recommend the use of a rear derailleur with increased cage tension (SRAM Type 2-3, Shimano Shadow +), which keeps the chain reliably in position and prevents it from jumping off.
Made in Italy
Note
The X-Ring EVO BCD 104 chainrings are compatible with Quarq SRAM XX1 Eagle, SRM Origin or other BCD 104 and 104/64 cranks . They are compatible with SRAM Eagle 12s (XX1, X01, GX, NX & SX) and Shimano Hyperglide + 12s chains (XTR, XT, SLX, Deore). Compatibility with 11-speed chains is also guaranteed. It is attached to the crank with only 4 standard external screws (M8x0.75) with a length of 7 mm or longer. Carbon-Ti recommends using the special X-Fix X-Ring EVO chainring bolts kit, which is available in various anodized colors. The external screws of the XX1 kits or similar (M8.5x0.75) are not compatible!
Technical specifications:
intended use : MTB
Material: aluminum 7075-T6
Technology: Narrow Wide
bolt circle diameter : 104 mm
Spider: 4-arm
Number of teeth: 38 teeth
Attachment: 4-hole
Compatibility cranks : SRAM Quarq XX1 Eagle, SRM Origin and all cranks with 104 mm bolt circle diameter
Compatibility chains: 11-speed , 12-speed SRAM Eagle and Shimano HG + (DCE +)
Assembly: inside
chain line : depending on the crank used
Offset: depending on the crank used
Adjustment options: none
Range (ovalization): -
Timing (force introduction): -
Color: Black
Weight according to the manufacturer: 57g
Weight weighed by yourself:
Scope of delivery: 1x CARBON-TI chainring X-Ring EVO 1-fold LK 104 mm | 38 teeth
