Description

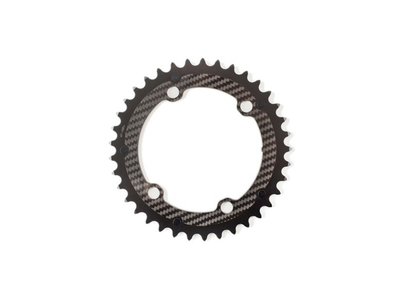

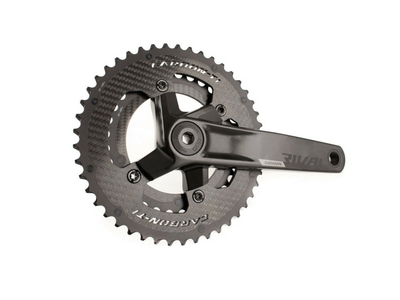

CARBON-TI chainring X-CarboRing X-AXS LK 107 mm asymmetrical | outer Ring
The new X-CarboRing X-AXS chain rings for the electronic SRAM AXS 12-speed groups with 107 mm bolt circle diameter . The round X-CarboRing EVO is the current development of super-light chainrings. For this purpose, a material mix based on 3K carbon fiber is married to a 7075-T6 aluminum alloy for the sprocket. High quality grade 5 titanium is used for the shift ramps. Designed for racing, this is the best material choice for durability and weight. The back of the carbon chainring is artfully milled to save the last few grams and enable perfect shifting. The use of aluminum as the tooth material ensures a long service life.
Note: For optimal shifting performance, CARBON-TI sees the use of a suitable inner CARBON-TI X-CarboRing X-AXS chainring with gradations of 50/37, 48/35, 46/33 teeth. Using other combinations is not recommended.
Technical specifications:
Area of intended use : road, triathlon
Material: 3K carbon, aluminum 7075-T6, titanium GRD5
Technology: optimized for SRAM Flattop
bolt circle diameter : 107 mm
Attachment: 4-arm spider
Number of teeth: 46 / 48 / 50 teeth
Compatibility cranks : SRAM and QUARQ cranks with 4-hole 107 mm
Compatibility chain: 12-speed SRAM eTap AXS Flattop
Mounting: outside
chain line : depending on the crank and frame
Offset: default
Adjustment options: none
Range (ovalization): -
Timing (force application): -
Colour: 3K carbon black
Weight according to the manufacturer: 101g (50 teeth), 95g (48 teeth), 83g (46 teeth)
Weight weighed: 96g (48 teeth)
Scope of delivery: 1x CARBON-TI chain ring X-CarboRing X-AXS LK 107 mm asymmetric | outer Ring
