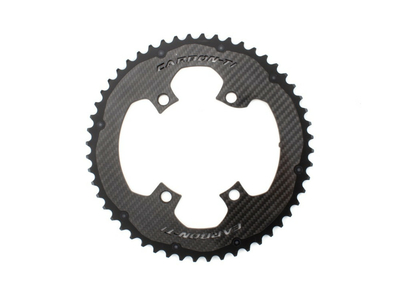

CARBON-TI Chainring X-CarboRing EVO 4-Arm LK 110 asymmetric | Dura Ace R9100 & Ultegra R8000 | Outer Ring 53 Teeth

Description

CARBON-TI chainring X-CarboRing LK 110 4-arm asymmetric | Dura Ace R9100 & Ultegra R8000 | Outer

The round X-CarboRing EVO features the highest level of development of Carbon-Ti chainrings, with a 7075-T6 aluminum alloy sprocket mounted on a 3K carbon fiber base. The shifting ramps are made of high-quality grade 5 titanium, which guarantees butter-smooth gear jumps. Specially designed for racing use, this material mix is the best compromise between durability and weight.
The back of the Carbon-Ti chainring is artfully milled to save even the last few grams and enable perfect shifting performance. The use of aluminum as the tooth material ensures a long service life. You can find the matching Carbon-Ti X-Fix Road chainring bolts in our store.

Notes:
For optimum shifting performance, CARBON-TI recommends the combination with the inner CARBON-TI X-CarboRing chainrings in the gradations 54/40, 53/39, 52/36 or 50/34. The use of other combinations is not recommended.
The chainring is not suitable for SRAM AXS.

Technical data:

Application: Road, Triathlon
Material: Carbon, aluminum 7075-T6, titanium
Technology: -
Bolt circle: 110 mm (compact)
Mounting: 4-arm spider asymmetric
Number of teeth: 50, 52, 53 or 54 teeth
Compatibility cranks: Shimano Dura-Ace 9100 11-speed, Ultegra 8000 11-speed, Campagnolo 12-speed groupsets and other 11-speed drivetrains with LK 110
Chain compatibility: 11-speed, 12-speed (except SRAM AXS Flattop)
Mounting: Outside
Chainline: Standard
Offset: none
Adjustment options: -
Range (ovalization): -
Timing (force application): -
Color: 3K carbon black satin finish

Weight according to manufacturer: 99g (50 teeth), 107g (52 teeth), 109g (53 teeth), 115g (54 teeth)
Weight as weighed: 92g (50 teeth)

Scope of delivery: 1x CARBON-TI chainring X-CarboRing LK 110 4-arm asymmetric | Dura Ace R9100 & Ultegra R8000 | Outer

The crank shown is for illustrative purposes only and is not included in the scope of delivery.
