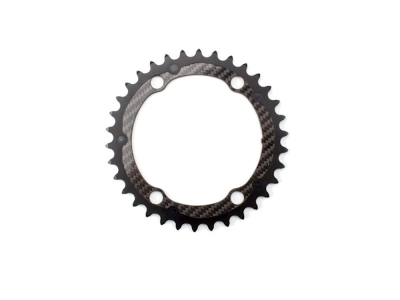

CARBON-TI chainring X-CarboRing LK 110 asymmetric | inner
The round X-CarboRing EVO is the latest development in super-light chainrings, combining a material mix based on 3K carbon fiber with a 7075-T6 aluminium alloy for the sprocket. High-quality grade 5 titanium is used for the shifting ramps. Designed for racing, this is the best choice of material for durability and weight.
The back of the carbon chainring is artfully milled to save the last few grams and enable perfect shifting behavior. The use of aluminum as the tooth material ensures a long service life.
The chainring is suitable for all 11-speed and 12-speed drivetrains except AXS Road. The matching Carbon-Ti X-Fix Road 5-hole chainring bolts or Carbon-Ti X-Cover chainring bolts for Shimano Dura-Ace 9200 can be found in our store.
Note: The chainrings are compatible with the new X-CarboRing EVO. The gradation is determined by the outer chainring.For optimum shifting performance, CARBON-TI recommends the combination with the outer CARBON-TI X-CarboRing chainrings in the gradations 55/40, 55/38, 54/40, 54/38, 53/39, 52/36 or 50/34.The use of other combinations is not recommended.
Technical data:
Area of application: Road, Triathlon
Material: carbon, aluminum 7075-T6, titanium
Technology: -
Bolt circle: 110 mm (compact)
Mounting: 4-arm spider asymmetric
Number of teeth: 34, 36, 38, 39 or 40 teeth
Compatibility cranks: all 110 mm asymmetrical
Chain compatibility: 11-speed, 12-speed no AXS flattop
Mounting: Internal
Chainline: Standard
Offset: none
Adjustment options: -
Range (ovalization): -
Timing (force application): -
Color: 3K-Carbon black
Weight according to manufacturer: 29g (34 teeth), 33g (36 teeth), 44g (38 teeth), 45g (39 teeth), 42g (40 teeth)
Weight self-weighed: 29g (34 teeth), 45g (38 teeth)
Scope of delivery: 1x CARBON-TI chainring X-CarboRing LK 110 asymmetric | inner

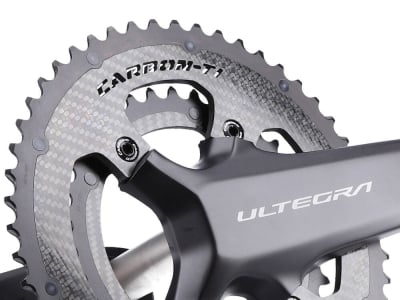

CARBON-TI Chainring X-CarboRing EVO 4-Arm LK 110 asymmetric | Dura Ace FC-R9200 & Ultegra FC-R8100 | outer Ringavailable from stock
